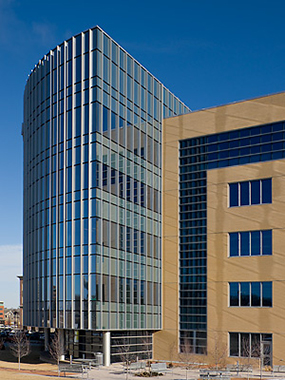

2506C Series Captured Curtain Wall System

Curtain Wall

Frame Depth (inches)

Description 6¼” depth captured curtain wall



  • Applications
  • Commercial
  • Education
  • Healthcare

Air Infiltration (cfm/ft2)

0.01

Water Resistance (psf)

15

Design Pressure Positive (psf)

60

Uniform Load Structural (psf)

90

U-Value

0.47

CRF

69

Standard Features

  • Outside glazed, captured  curtain wall systems
  • Split male-female mullion which allows factory assembly and sealing to reduce cost and improve quality control
  • 1/4" glazing gaskets with 3/8" thick thermal insulator
  • Accommodates 1/4" to 1 1/8" infill material depending on model
  • Infill material secured by screw applied pressure plate
  • Snap-on cover conceals pressure plate screws and allows dual colors
  • Engineering assistance with custom applications
  • Superior craftsmanship and exceptional technical expertise



Technical Data

CAD Files

Description

AutoCAD

PDF

Detail A
Detail B
Detail C
Detail D
Detail E
Detail F
Detail G
Detail H
Detail J
Detail K
Detail L
