0400 Series Horizontal Sliding

Horizontal Sliding Window

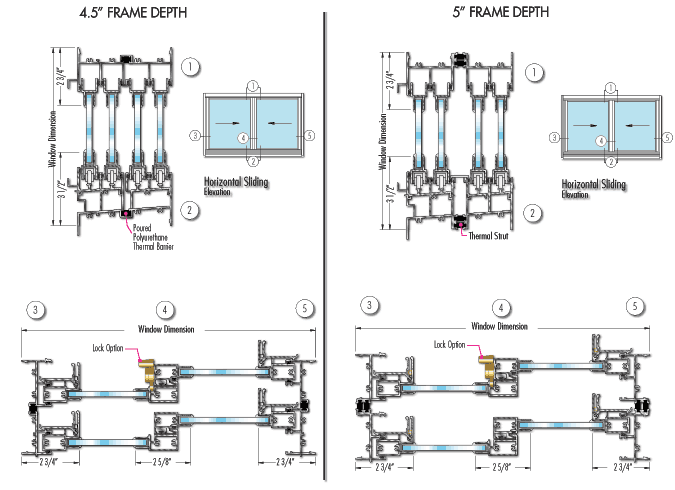

Frame Depth (inches) 4.5 - 5.0

Operation

Description Aluminum acoustical dual sash horizontal sliding window.



  • Applications
  • Acoustical

AAMA Rating

LC-PG60

Test Size (inches)

71 x 56

Air Infiltration (cfm/ft2)

0.12

Water Resistance (psf)

9.19

Design Pressure Positive (psf)

60.15

Uniform Load Structural (psf)

90.23

U-Value

0.41-0.53

CRF

63

STC

36-47

Technical Data

Installation Accessories

4½" Unitized Frame Accessories
View Accessories >
4½” Frame Accessories
View Accessories >
5" Frame Accessories
View Accessories >

CAD Files

Description

AutoCAD

PDF

Acoustical Aluminum Horizontal Slider, Single Glazed; 4½" Frame Depth; XX
Acoustical Aluminum Horizontal Slider, Single Glazed; 4½" Frame Depth; XOX
Acoustical Aluminum Horizontal Slider, Insulating Glass; 4½" Frame Depth; XX
Acoustical Aluminum Horizontal Slider, Insulating Glass; 4½" Frame Depth; XOX
Acoustical Aluminum Horizontal Slider, Glazing Options; 4½" Frame Depth
Acoustical Aluminum Horizontal Slider, Frame Options; 4½" Frame Depth - 1
Acoustical Aluminum Horizontal Slider, Frame Options; 4½" Frame Depth - 2
Acoustical Overview; Aluminum Horizontal Slider
Acoustical Aluminum Horizontal Slider, Single Glazed; 5" Frame Depth; XX
Acoustical Aluminum Horizontal Slider, Single Glazed; 5" Frame Depth; XOX
Acoustical Aluminum Horizontal Slider, Insulating Glass; 5" Frame Depth; XX
Acoustical Aluminum Horizontal Slider, Insulating Glass; 5" Frame Depth; XOX
Acoustical Aluminum Horizontal Slider, Glazing Options; 5" Frame Depth
Acoustical Aluminum Horizontal Slider, Frame Options; 5" Frame Depth - 1
Acoustical Aluminum Horizontal Slider, Frame Options; 5" Frame Depth - 2
aama-nfrc-web_med
TESTING: Our products are tested to the standards of and certified by the American Architectural Manufacturer's Association and the National Fenestration Rating Council.
