6500 Series Acoustical Projected

Projected Window

Frame Depth (inches) 2.25

Operation

Description Aluminum acoustical projected window.



  • Applications
  • Acoustical
  • Education
  • Healthcare

AAMA Rating

AW-PG90 / AP-HC90

Test Size (inches)

66 x 42

Air Infiltration (cfm/ft2)

0.01

Water Resistance (psf)

12.11

Design Pressure Positive (psf)

90.23

Uniform Load Structural (psf)

135.34

U-Value

0.40 - 0.59

CRF

54

STC

37-43

Technical Data

Installation Accessories

2¼” Frame Depth Accessories
View Accessories >

CAD Files

Description

AutoCAD

PDF

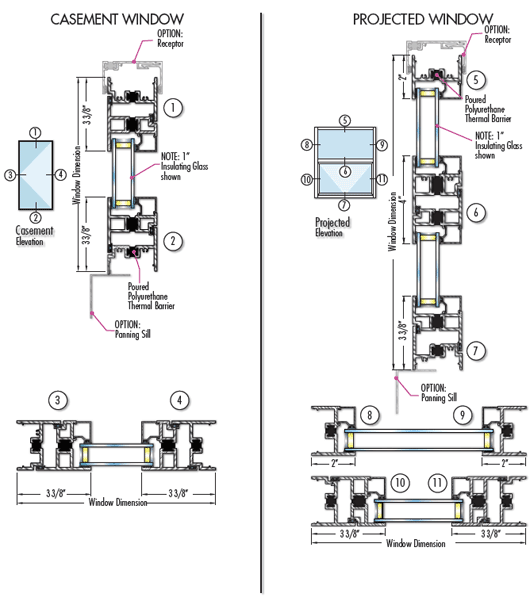

Casement; 1½" Insulating Glass
Projected; 1½" Insulating Glass
Fixed; 1½" Insulating Glass
Fixed; Lift-In Guardian
Acoustical Overview; Aluminum Casement
aama-nfrc-web_med
TESTING: Our products are tested to the standards of and certified by the American Architectural Manufacturer's Association and the National Fenestration Rating Council.
