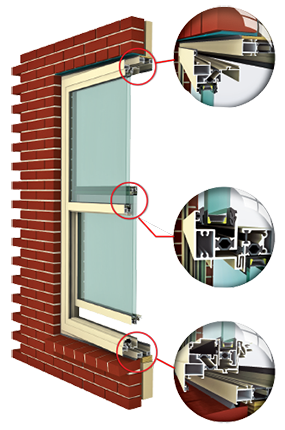

911 Series Casement / Single Hung (Emergency Egress)

Casement Window

Frame Depth (inches) 2.75 - 3.375

Description An egress system designed to operate as a single hung window under normal conditions and as a casement in emergency situations.



  • Applications
  • Commercial

Test Size (inches)

48 x 72

Air Infiltration (cfm/ft2)

0.23

Water Resistance (psf)

6

Design Pressure Positive (psf)

40

Uniform Load Structural (psf)

±60.19

U-Value

0.38 - 0.42

Test Method

*Estimated values based on similar product

Notes

The air infiltration and water resistance performance values provided above were achieved in a controlled lab environment. Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products.

Standard Features

  • 2 3/4" to 3 3/8" frame depth for casement only configuration; 3 3/8" for single hung/casement configuration
  • Block & tackle balances
  • Thermal strut technology for superior U-values
  • Automatic locking at the sill
  • Euro-groove design for hardware versatility
  • Dry glazed with EPDM & marine vinyl
  • 7/8" overall glazing

Optional Features

  • True and exterior-applied muntin grids (casement only configuration)
  • Exterior-applied muntin grids (single hung/casement configuration)
  • May be fitted with insect or security screen while still meeting egress codes
