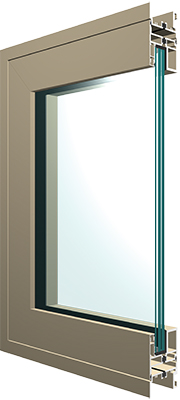

Print this page B6800HP Series High Performance Casement/Projected
Casement Window
Frame Depth (inches) 3.5
Description High performance blast resistant architectural grade 3-1/2" casement & projected window
- Applications
- Security and Blast Resistant
Test Size (inches)
49.75 x 67.75
Condition/Hazard Response
Low
Design Blast Pressure (psi)
10.8 & 23.5 psi
Positive Phase Impulse (psi-msec)
96 & 100 psi-msec
Test Method
ASTM F 1642
Standard Features
- Casement/Projected/Fixed windows for blast mitigation
- Provides GSA level D or higher protection against explosive attacks
- Meets DoD UFC 4-010-01 criteria
- Trim & clip anchoring system
- 1 3/16" insulating glass construction using industry standard laminated technology
- Sloped exterior glazing leg simulates putty-glazed profile (available option)
- Integral and fixed-stack mull for minimal sight-lines
- Mulls to 3 1/2" frame fixed and operable products
- Flush design of vent & frame for aesthetic appeal
