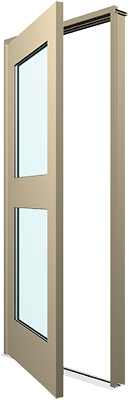

Print this page Blast Resistant - B7600 Series Door Single
Doors
Frame Depth (inches) 6.375
Description Blast resistant entry door
- Applications
- Commercial
- Security and Blast Resistant
Test Size (inches)
44.50 x 88.25
Condition/Hazard Response
Minimal
Design Blast Pressure (psi)
6.4 PSI
Positive Phase Impulse (psi-msec)
50 psi-msec
Test Method
ASTM F1642
Standard Features
- Aluminum Entry System for blast mitigation
- Meets DoD UFC4-010-01 criteria
- Provides GSA Level C protection against explosive attacks
- Single and double door panels available
- Door thickness of 1 3/4", accepting 1" insulating glazing units with laminated interior glass
- Stile width of 5 3/4", with 7 1/4" top rail and 10 3/4" bottom rail standard (sightlines)
- High-performance fixed framing provides a 6 3/8" system depth, 2 1/2" sightline
- Pressure plate system for easy field glazing
- Screw spline frame construction
- Transom and sidelite elevation configurations available
Technical Data
Product Literature
Additional Resources
CAD Files
Description
AutoCAD
Blast Resistant Entry System; Mullion Frame, 3 over 3 Transom & Sidelites
- B76_11.pdf
Drawing Preview
Blast Resistant Entry System; Mullion Frame, 4 over 4 Transom & Sidelites
- B76_13.pdf
Drawing Preview
