GT0200 Series Horizontal Sliding

Horizontal Sliding Window

Frame Depth (inches) 4.0

Description Advanced design thermal strutted architecural grade horizontal sliding window that mulls to 4” frame fixed and operable products.



  • Applications
  • Commercial
  • Energy Performance
  • Healthcare
  • Historic Replication
  • Residential High-Rise

AAMA Rating

AW-PG60

Test Size (inches)

150 x 79

Air Infiltration (cfm/ft2)

0.12

Water Resistance (psf)

12.11

Design Pressure Positive (psf)

60.15

Uniform Load Structural (psf)

90.23

U-Value

0.32 - 0.45

CRF

65

STC

N/A

Notes

The air infiltration and water resistance performance values provided above were achieved in a controlled lab environment. Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products.

Standard Features

  • Dual strut thermal breaks for improved thermal performance
  • Mulls to 4" frame fixed and operable products
  • All sash, fixed and operating, are removable from inside
  • Chrome steel ball bearing rollers adjust to two positions
  • Full-length integral pull rails
  • Sweep lock and keeper
  • Exterior-beveled (putty) glazing leg on model GT0200H (Historic beveled sash) & up to 1" insulating glass

Optional Features

  • Anti-takeout blocks to restrict sash removal
  • Extruded latch at jamb
  • 3" Extruded Auto Lock or Full Length Extruded Auto Lock (specify)
  • Flange frame 2"
  • Bypassing sash (not available with extruded locks) for easy cleaning without removing
  • Up to 1 1/4" glazing pocket on Model GT0200F (flat glazing leg sash) for triple glazing combinations
  • Optional 15 lbs. water sill and high performance meeting rails
  • Dual finish (two-tone color) option

Technical Data

Product Literature

Additional Resources

Installation Accessories

4" Frame Accessories
View Accessories >

CAD Files

Description

AutoCAD

PDF

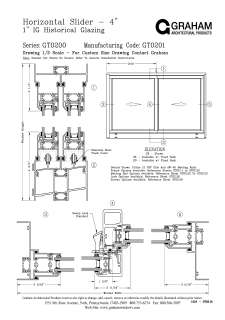

1" IG Historical Glazing
1-1/4" IG Flat Glazing
1" IG Historical Glazing
1-1/4" IG Non-Historic Glazing
1" IG Historical Glazing
1-1/4" IG Non-Historical Glazing

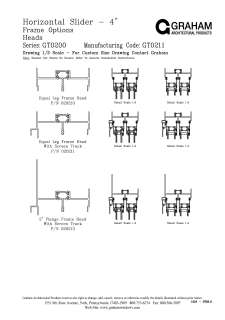

Frame Options: Head

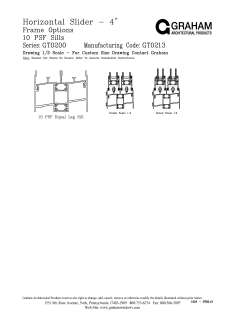

Frame Options: 10 PSF Sills

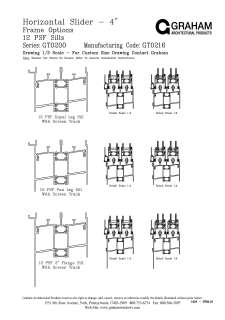

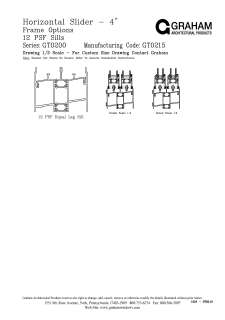

Frame Options: 12 PSF Sills
Frame Options: 12 PSF Sills

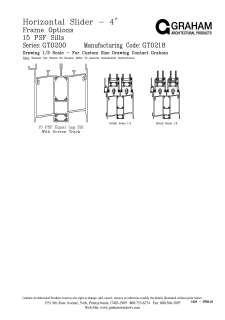

Frame Options: 15 PSF Sills

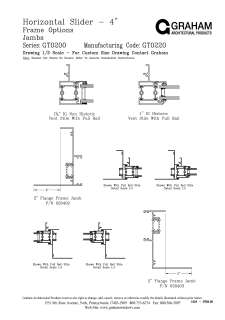

Frame Options: Jambs
Frame Options: Meeting Rails - AW40 Rated

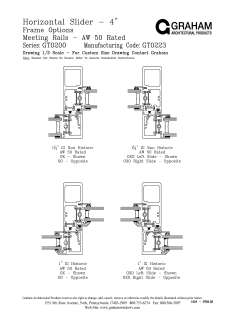

Frame Options: Meeting Rails - AW50 Rated

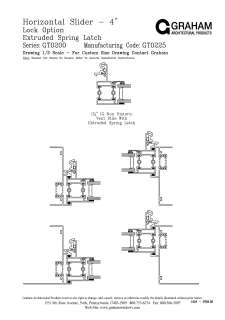

Lock Option: Extruded Spring Latch

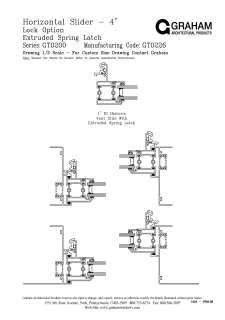

Lock Option 2: Extruded Spring Latch

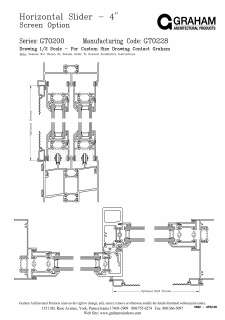

Screen Option
