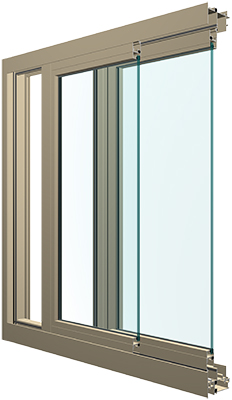

HI0900 Series Sliding Glass Door

Doors

Frame Depth (inches) 4.0

Description Hurricane resistant architectural grade sliding glass door



  • Applications
  • Hurricane Resistant

Test Size (inches)

72 x 84 / 84 x 82

Water Resistance (psf)

11/ 12

Design Pressure Positive (psf)

70 / 60

Design Pressure Negative (psf)

100 / 60

STC

Up to 38

Glass

Single Lami / IG

Large Missle

Meets

Notes

FL Approval #: 10080.3 (72 x 84)

The water resistance performance values provided above were achieved in a controlled lab environment. Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products.

Standard Features

  • Sliding glass doors for hurricane-impact resistance
  • Provides large missile hurricane-impact protection
  • Offers passive protection from wind-borne debris without shutters
  • Thermally broken frame and panels for superior energy savings
  • Available in 2 or 3 panel configurations
  • Mulls to fixed and operable products of the same frame depth
  • Adjustable tandem steel rollers & stainless track cover for smooth operation
  • Locking handle and extruded surface mount pull handle
  • Top-hung screen
  • STC values up to 38

Optional Features

  • Dead bolt night lock
  • Historic grids
  • Insulating glass

Technical Data

Installation Accessories

4" Frame Accessories
View Accessories >

CAD Files

Description

AutoCAD

PDF

Sliding Glass Door
Sliding Glass Door; Large Missile

TESTING:ASTM E1886, ASTM E1996, and/or TAS 201, TAS 202, TAS 203
