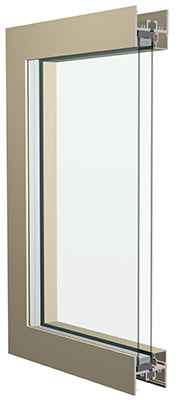

HI6500 Series Fixed

Fixed Window

Frame Depth (inches) 2.25

Description Fixed windows for hurricane-impact resistance.



  • Applications
  • Hurricane Resistant

Test Size (inches)

48 x 96

Water Resistance (psf)

12

Design Pressure Positive (psf)

50

Design Pressure Negative (psf)

50

Large Missle

Meets

Notes

Contact Graham for available glazing and test configurations.

Standard Features

  • Fixed window for hurricane-impact resistance
  • Integral and fixed-stack mull for minimal sightlines
  • Mulls horizontally or vertically to 2¼” frame fixed and operable products
  • Receptor and panning systems available for installation
  • Flush design of vent and frame for aesthetic appeal
  • Frame and Vent 0.125” wall thickness

Optional Features

  • Dual-glazed design offers optional:
    - High performance glazing combinations
    - Integral mini-blinds
    - Impact-resistant polycarbonate lite
  • Stainless steel projected or aluminum hardware
  • Hardware options to limit access to custodial use
  • In-swing or out-swing on operable units
  • Blast-resistant (B6500) version available

Technical Data

Installation Accessories

2¼” Frame Depth Accessories
View Accessories >

CAD Files

Description

AutoCAD

PDF

Fixed over Projected; Annealed-Lami IG

TESTING:ASTM E1886, ASTM E1996, and/or TAS 201, TAS 202, TAS 203
