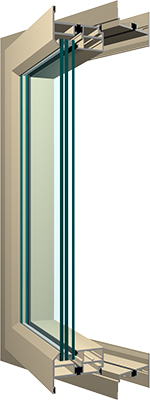

HI6800 Series Casement

Casement Window

Frame Depth (inches) 3.5

Description Hurricane resistant architectural grade casement window



  • Applications
  • Historic Replication
  • Hurricane Resistant

Test Size (inches)

48 x 48 / 42 x72

Water Resistance (psf)

9/12

Design Pressure Positive (psf)

70/90

Design Pressure Negative (psf)

70/120

Large Missle

Meets

Notes

FL Approval #: 10082.1 (42 x 72), 10082.2 (48 x 48)

Standard Features

  • Casement windows for hurricane-impact resistance
  • Provides large missile impact protection
  • Offers passive protection from wind-borne debris without shutters
  • Thermally broken frame and vent for superior energy savings
  • Sloped exterior glazing leg simulates putty-glazed profile
  • Integral and fixed stack mull for minimal sightlines
  • Mulls to fixed and operable products of the same frame depth
  • Flush design of vent & frame for aesthetic appeal
  • Outswing vents only

Optional Features

  • Dual glazed with blinds
  • Historic grids
  • Hardware options
  • Blast resistant

Technical Data

Installation Accessories

3½” Frame Accessories
View Accessories >

CAD Files

Description

AutoCAD

PDF

Casement w/Guardian; Triple Glazed
Casement; Single Glazed
Casement; Insulating Glass
Twin Casement; Insulating Glass
Casement w/Guardian; Triple Glazed; Alternate Glazing

TESTING:ASTM E1886, ASTM E1996, and/or TAS 201, TAS 202, TAS 203
