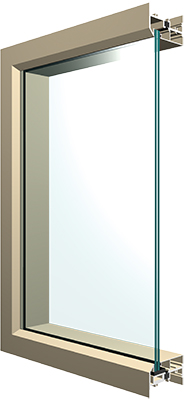

HI6800 Series Fixed

Fixed Window

Frame Depth (inches) 3.5

Description Hurricane resistant architectural grade fixed window



  • Applications
  • Historic Replication
  • Hurricane Resistant

Test Size (inches)

48 x 72 / 48 x 80

Water Resistance (psf)

11/12

Design Pressure Positive (psf)

90/80

Design Pressure Negative (psf)

120/80

Large Missle

Meets

Notes

FL Approval #: 10084.8 (48 x 72)

The water resistance performance values provided above were achieved in a controlled lab environment. Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products.

Standard Features

  • Casement windows for hurricane-impact resistance
  • Provides large missile impact protection
  • Offers passive protection from wind-borne debris without shutters
  • Thermally broken frame and vent for superior energy savings
  • Sloped exterior glazing leg simulates putty-glazed profile
  • Integral and fixed stack mull for minimal sightlines
  • Mulls to fixed and operable products of the same frame depth
  • Flush design of vent & frame for aesthetic appeal
  • Outswing vents only

Optional Features

  • Dual glazed with blinds
  • Historic grids
  • Hardware options
  • Blast resistant

Related Products

HI6800 Series Casement

Casement Window
Frame Depth (inches) 3.5
Description Hurricane resistant architectural grade casement window
Test Size (inches)48 x 48 / 42 x72
Water Resistance (psf)9/12
Design Pressure Positive (psf)70/90
Design Pressure Negative (psf)70/120
Large MissleMeets
Notes

FL Approval #: 10082.1 (42 x 72), 10082.2 (48 x 48)

The water resistance performance values provided above were achieved in a controlled lab environment. Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products.

Technical Data

Installation Accessories

3½” Frame Accessories
View Accessories >

CAD Files

Description

AutoCAD

PDF

Fixed; Single Glazed
Fixed; Insulating Glass

TESTING:ASTM E1886, ASTM E1996, and/or TAS 201, TAS 202, TAS 203
