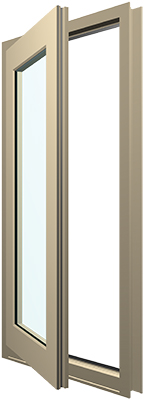

HIS7400 Series Terrace Door

Doors

Frame Depth (inches) 3.25

Description Hurricane resistant architectural grade terrace door



  • Applications
  • Hurricane Resistant

Test Size (inches)

42 x 96 / 39.5 x 96.5 / 60 x 98

Water Resistance (psf)

12 (Outswing) / 10 (Inswing) / N/A (Double)

Design Pressure Positive (psf)

70 / 80

Design Pressure Negative (psf)

70 / 110

Large Missle

Meets (single & double)

Small Missle

Meets (double only)

Notes

FL Approval #: 8890.1 (42 x 96), 11656.1 (39-1/2 x 96-1/2)

The water resistance performance values provided above were achieved in a controlled lab environment. Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products.

Standard Features

  • Terrace door for hurricane-impact resistance
  • Provides ASTM level D, wind zone 4, large missile hurricane-impact protection
  • Offers passive protection from wind-borne debris without shutters
  • Thermally improved with dual polyamide insulating strips for energy savings
  • Sloped exterior glazing leg simulates historical putty-glazed profile
  • Mulls to fixed and operable products of the same frame depth
  • Sill anchor plate for simplified installation
  • Outswing-only models available

Optional Features

  • Fixed lites with matching grids
  • Historic grids
  • Hardware options
  • Putty bead glazed door leaf

Technical Data

Installation Accessories

3¼” Frame Accessories
View Accessories >

CAD Files

Description

AutoCAD

PDF

Terrace Door Singled Glazed; Standard Sill
Terrace Door Insulating Glass; Standard Sill
Double Terrace Door Insulating Glass; Standard Sill
Double Terrace Door Insulating Glass; Low Sill

TESTING:ASTM E1886, ASTM E1996, and/or TAS 201, TAS 202, TAS 203
