S0900 Series (OXO) Sliding Glass Doors

Doors

Frame Depth (inches) 4.0

Description This highly versatile architectural grade thermal strutted sliding glass door is ideal for apartment buildings and hotels.



  • Applications
  • Commercial
  • Residential High-Rise

AAMA Rating

AW-PG65

Test Size (inches)

144 x 96

Air Infiltration (cfm/ft2)

0.13

Water Resistance (psf)

12.11

Design Pressure Positive (psf)

70.18

Uniform Load Structural (psf)

105.26

U-Value

0.39 - 0.59

CRF

50

STC

37

Notes

The air infiltration and water resistance performance values provided above were achieved in a controlled lab environment. Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products.

Standard Features

  • Mulls to 4" fixed and operable products
  • Adjustable stainless steel tandem rollers
  • Stainless steel track cover
  • Extruded surface mount pull handle
  • Top-hung screen

Optional Features

  • 10 psf and 12 psf high-performance sill options
  • Fixed transom at top
  • Fixed side lite
  • Deadbolt night lock
  • Dual finish (two-tone color) option

Technical Data

Installation Accessories

4" Frame Accessories
View Accessories >

CAD Files

Description

AutoCAD

PDF

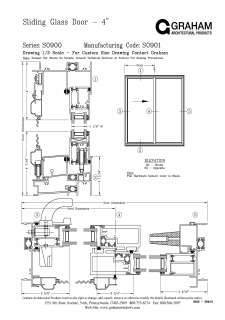

Insulating Glass; XO; Thermal Strut

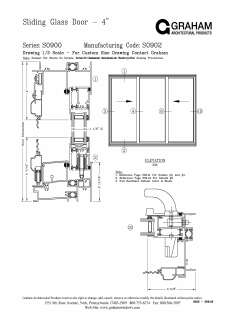

Insulating Glass; XOX; Thermal Strut

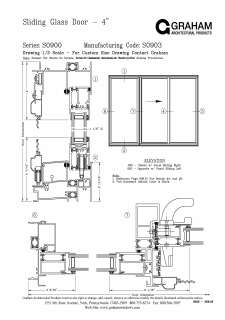

Insulating Glass; OXO; Thermal Strut

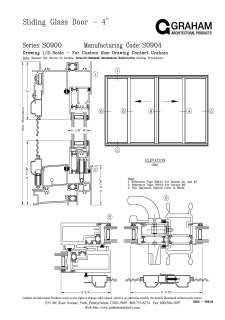

Insulating Glass; OXXO; Thermal Strut

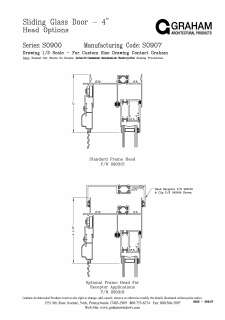

Frame Options - Head; Thermal Strut

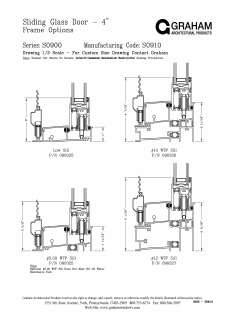

Frame Options - Sill; Thermal Strut

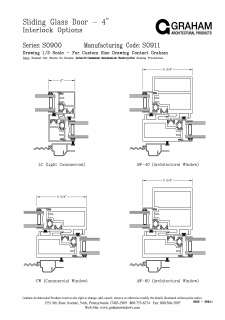

Interlock Options; Thermal Strut
aama-nfrc-web_med
TESTING: Our products are tested to the standards of and certified by the American Architectural Manufacturer's Association and the National Fenestration Rating Council.
