Print this page GT2200 Series Single Hung
Hung Window
Frame Depth (inches) 4.0
Description Advanced design thermal strutted architectural grade single hung window that mulls to 4” frame fixed and operable products.
- Applications
- Commercial
- Education
- Energy Performance
- Historic Replication
- Residential High-Rise
AAMA Ratings
AW-PG50
AW-PG70
Test Size (inches)
60 x 99
Air Infiltration (cfm/ft2)
0.18
Water Resistance (psf)
12.11
Design Pressure Positive (psf)
50.13 / 70.18
Uniform Load Structural (psf)
75.19 / 105.27
U-Value
0.35 - 0.44
CRF
60
Notes
The air infiltration and water resistance performance values provided above were achieved in a controlled lab environment. Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products.
Standard Features
- Dual strut thermal breaks with 24 mm separation for improved thermal performance
- Block & tackle balances for superior operation
- Mulls to 4" frame fixed and operable products
- Sash removes from frame for maintenance & cleaning without special tools
- Full-length extruded lift handles
- Exterior-beveled (putty) glazing leg & up to 15/16" insulating glass
Optional Features
- Applied-profile muntin grids
- 3" Extruded Auto Lock or Full Length Extruded Auto Lock (specify)
- High-performance balances up to 100 lbs. per sash with same sightlines at jambs as standard balance
- White bronze hardware
- Dual finish (two-tone color) option
Related Products
HIGT2200 Series Single Hung
Hung WindowFrame Depth (inches) 4.0
Description Hurricane resistant thermal strutted architectural grade single hung window that mulls to 4” frame fixed and operable products. Sash easily removes from frame for cleaning. Thermal strut for enhanced thermal performance.
Test Size (inches)50 x 90
Water Resistance (psf)12.11
Design Pressure Positive (psf)70
Design Pressure Negative (psf)90
Large MissleMeets
Small MissleMeets
GT2200 Series Double Hung
Hung WindowFrame Depth (inches) 4.0
Description Advanced design thermal strutted architecural grade double hung window that mulls to 4” frame fixed and operable products.
U-Value0.35 - 0.44
AAMA RatingAW PG55
AW-PG90
AW-PG90
Test Size (inches)60 x 99
Air Infiltration (cfm/ft2)0.26
Water Resistance (psf)12
Design Pressure Positive (psf)55/90
Technical Data
Product Literature
Additional Resources
Specifications
Thermal Summary

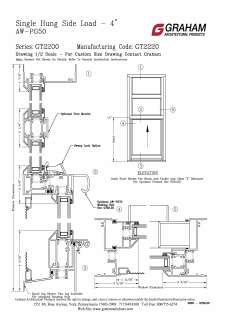

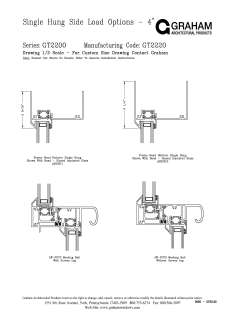

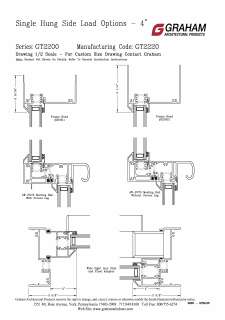

CAD Drawings
Installation Guide
Hung Window Installation Manual
Accessory Installation Guides
Installation Accessories
CAD Files
Description
AutoCAD

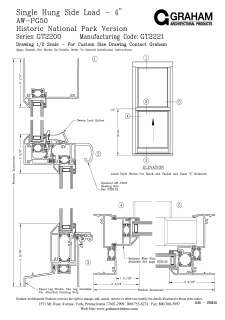

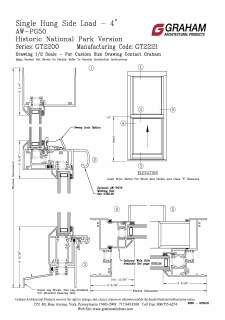

Single Hung Side Load, Historic National Park Version
- GT22_21_0323.pdf
Drawing Preview
 TESTING: Our products are tested to the standards of and certified by the American Architectural Manufacturer's Association and the National Fenestration Rating Council. |
