Hurricane Resistant - HIGT6700 Series Projected

Projected Window

Frame Depth (inches) 3.0

Description New and improved highly energy efficient window, for hurricane impact resistance, with a historic window profile. The newly designed GT6700 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.



  • Applications
  • Hurricane Resistant

Test Size (inches)

40 x 84

Air Infiltration (cfm/ft2)

<0.10

Water Resistance (psf)

12

Design Pressure Positive (psf)

100

Uniform Load Structural (psf)

150

U-Value

0.39 - 0.46

CRF

N/A

Test Method

AAMA 506-16, ASTM E 1886-12, ASTM E 1996-17

Large Missle

Meets

Small Missle

Meets

Notes

The air infiltration and water resistance performance values provided above were achieved in a controlled lab environment. Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products.

View 3D

Standard Features

  • Projected awning windows for hurricane-impact resistance
  • Provides large/small missile impact protection
  • 1-5/8” slim sightline historic profiles
  • 3” Frame Depth
  • 1” or 1-1/4” overall glazing infills
  • Reduced number of parts for better product performance and integrity
  • Special euro-grooves to accommodate multiple hardware options and accessory applications
  • Superior joinery allows for larger units and more configurations
  • Deep sloped exterior glazing leg
  • Fixed/Operable intermediate design offers minimal sightlines
  • Design allows multiple units into one opening simplifying installation
  • larger thermal strut technology for excellent thermal performance
  • Concealed hinges
  • 4-inch limited opening device

Optional Features

  • True and exterior applied muntin grids
  • Concave frame and muntins
  • Flush-face vent/frame
  • Equal sightline frame
  • Roto operators
  • Single lever operator
    - Eliminates need for wicket screens
    - Can assist with meeting ADA operational forces
  • Multi-point locking system
  • Dual finish (two-tone color) option

Related Products

Hurricane Resistant - HIGT6700 Series Fixed

Fixed Window
Frame Depth (inches) 3.0
Description New and improved highly energy efficient window, for hurricane-impact resistance, with a historic window profile. The newly designed GT6700 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
U-Value0.31 - 0.39
Test Size (inches)54 x 96
Air Infiltration (cfm/ft2)<0.10
Water Resistance (psf)12
Design Pressure Positive (psf)100
Uniform Load Structural (psf)150
HIGT6700 Data Sheet
HIGT6700B/C Fixed DP +70 ; -90 CSI Spec
GT6700 Fixed Thermal Simulation Summary
HIGT6700 Fixed FL38522.1

Hurricane Resistant - HIGT6700 Series Casement

Casement Window
Frame Depth (inches) 3.0
Description New and improved highly energy efficient window, for hurricane-impact resistance, with a historic window profile. The newly designed GT6700 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
U-Value0.38 - 0.43
Test Size (inches)42 x 78
Air Infiltration (cfm/ft2)<0.10
Water Resistance (psf)12
Design Pressure Positive (psf)+70
Design Pressure Negative (psf)-90
HIGT6700 Data Sheet
HIGT6700 OS Casement DP +70 ; -90 CSI Spec
GT6700 Casement Thermal Simulation Summary
HIGT6700 Casement FL38534.1

Technical Data

Product Literature

Additional Resources

HIGT6700 Data Sheet

Specifications

HIGT6700B/C Awning DP +70 ; -90 CSI Spec

Thermal Summary

GT6700 Awning Thermal Simulation Summary

FL Approval Submittal

HIGT6700 Awning FL38535.1

Installation Guide

Projected and Casement Installation Manual

Accessory Installation Guides

View Graham's Technical Resources Page

Installation Accessories

3" Frame Accessories
View Accessories >
3" Unitized Frame Accessories
View Accessories >

CAD Files

Description

AutoCAD

PDF

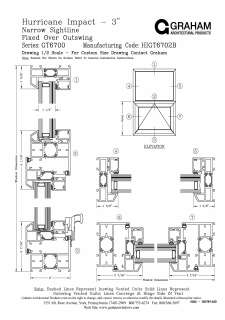

Hurricane-Impact Fixed over Outswing (Beveled; Narrow Siteline)
HIGT67_02B_0623.dwg
