Print this page GS6600 Series Projected
Projected Window
Frame Depth (inches) 2.5
Description New and improved highly energy efficient commercial window with a historic window profile. The newly designed GS6600 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
- Applications
- Commercial
AAMA Rating
AW-PG100
Test Size (inches)
60 X 36
Air Infiltration (cfm/ft2)
<0.10
Water Resistance (psf)
12
Design Pressure Positive (psf)
100
Uniform Load Structural (psf)
150
U-Value
0.44-0.52
CRF
51-59
Notes
Values above are estimated from testing of a similar series | Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products. | U-values will vary depending upon glazing selected and sample size
Standard Features
- 2-½” Frame Depth
- Special euro-grooves to accommodate multiple hardware options and accessory applications
- Superior joinery allows for larger units and more configurations
- Deep sloped exterior glazing leg
- Multiple glazing depths available
- Fixed/Operable intermediate design offers minimal sightlines
- Design allows multiple units into one opening simplifying installation
- Larger thermal strut technology for excellent thermal performance
- Dual finish (two-tone color) option
- Concealed hinges
- 4-inch limited opening device
Optional Features
- True and exterior applied muntin grids
- Concave frame and muntins
- Flush-face vent/frame
- Equal sightline frame
- Roto operators
- Limited operation devices
- Multi-point locking system
Related Products
GS6600 Series Fixed
Fixed WindowGS6600 Series Casement
Casement WindowTechnical Data
Product Literature
Additional Resources
Specifications
GS6600B/C Projected Awning AW-PG100 AAMA-08 Spec
GS6600F Projected Awning AW-PG100 AAMA-08 Spec
GS6600B/C Projected Hopper AW-PG100 AAMA-08 Spec
GS6600F Projected Hopper AW-PG100 AAMA-08 Spec

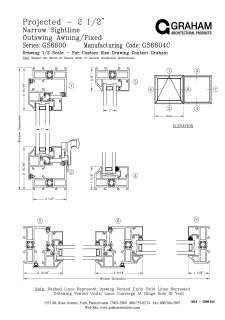

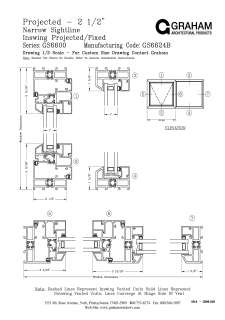

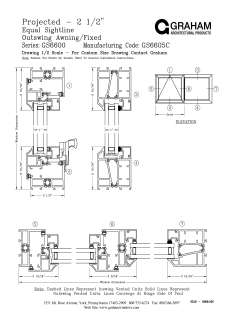

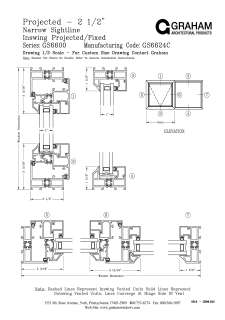

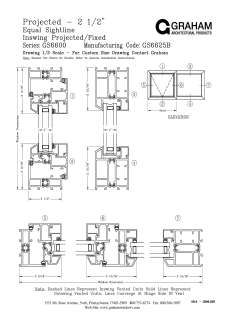

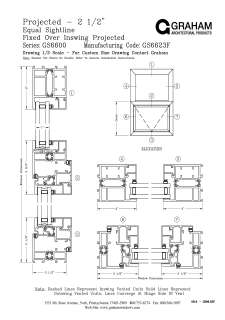

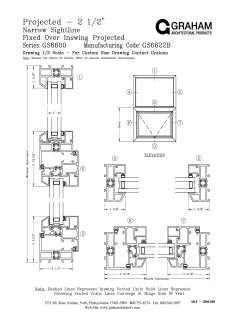

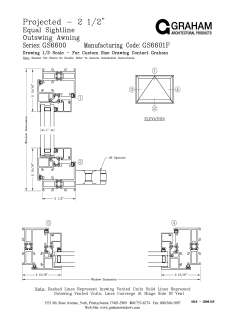

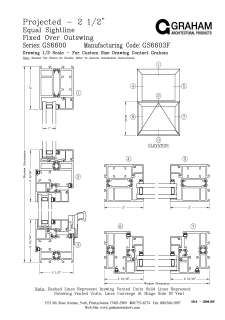

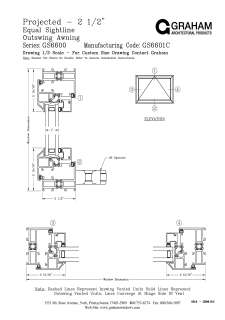

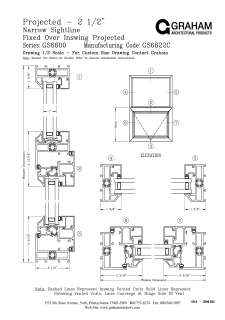

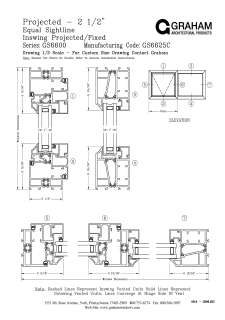

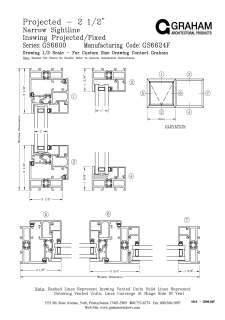

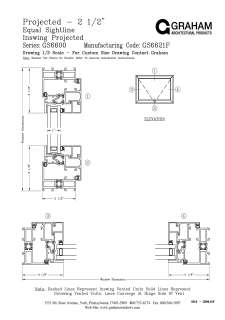

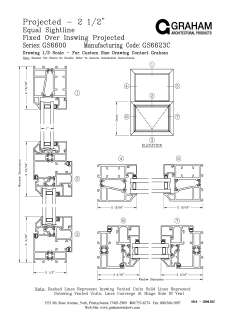

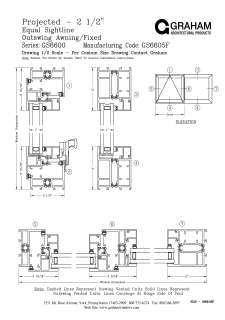

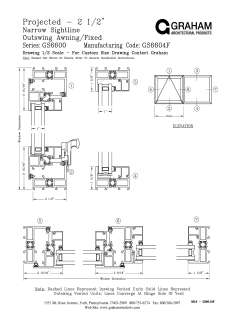

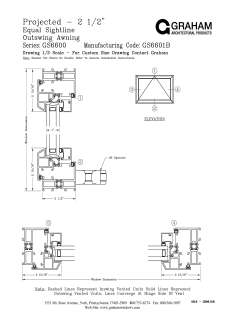

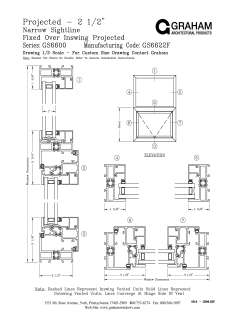

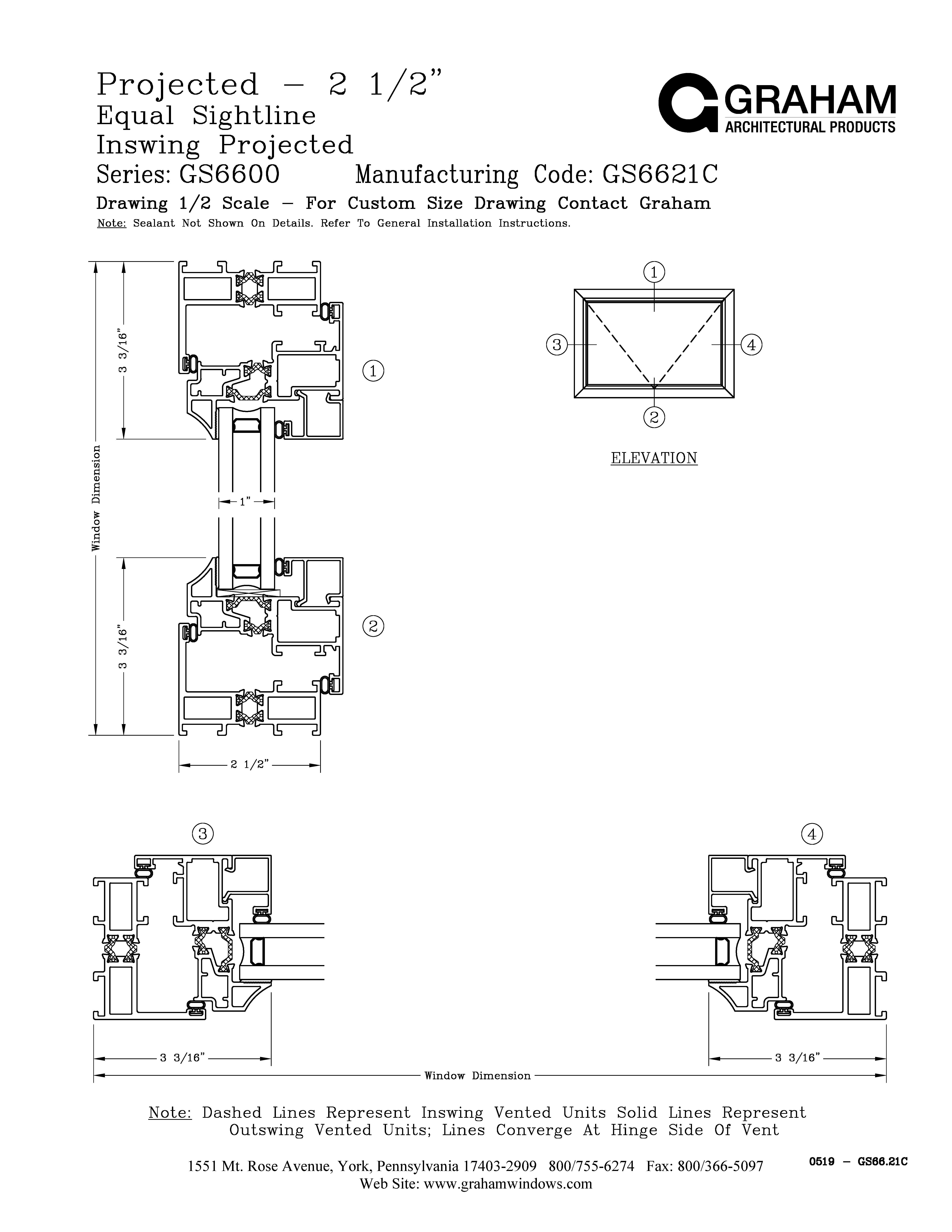

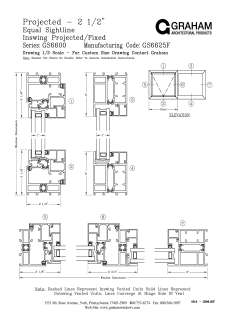

CAD Drawings
GS6600 - All CAD files (zipped)
Thermal Summary
GS6600 Awning Thermal Simulation Summary
Product Performance Guide
Installation Guide
Projected/Casement Installation Instructions
Accessory Installation Guides
Installation Accessories
CAD Files
Description
AutoCAD

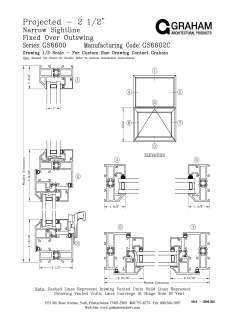

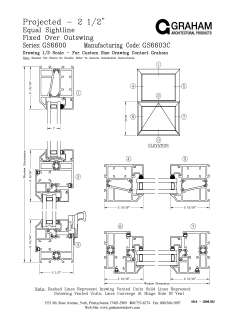

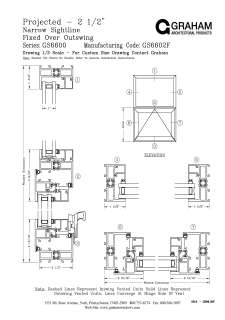

Fixed Over Outswing; Narrow Sightline; Flush Face
- GS66_02FFB_0323.pdf
Drawing Preview
 TESTING: Our products are tested to the standards of and certified by the American Architectural Manufacturer's Association and the National Fenestration Rating Council. |
