GS6600 Series Casement

Casement Window

Frame Depth (inches) 2.5

Description New and improved highly energy efficient commercial window with a historic window profile. The newly designed GS6600 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.



  • Applications
  • Commercial

AAMA Rating

AW-PG100

Test Size (inches)

36 x 60

Air Infiltration (cfm/ft2)

<0.10

Water Resistance (psf)

12

Design Pressure Positive (psf)

100

Uniform Load Structural (psf)

150

U-Value

0.44-0.52

CRF

51-59

Notes

Values above are estimated from testing of a similar series | Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products. | U-values will vary depending upon glazing selected and sample size

Standard Features

  • 2-½” Frame Depth
  • Special euro-grooves to accommodate multiple hardware options and accessory applications
  • Superior joinery allows for larger units and more configurations
  • Deep sloped exterior glazing leg
  • Multiple glazing depths available
  • Fixed/Operable intermediate design offers minimal sightlines
  • Design allows multiple units into one opening simplifying installation
  • Larger thermal strut technology for excellent thermal performance
  • Dual finish (two-tone color) option
  • Concealed hinges
  • 4-inch limited opening device

Optional Features

  • True and exterior applied muntin grids
  • Concave frame and muntins
  • Equal sightline frame
  • Roto operators
  • Limited operation devices
  • Multi-point locking system

Related Products

GS6600 Series Projected

Projected Window
Frame Depth (inches) 2.5
Description New and improved highly energy efficient commercial window with a historic window profile. The newly designed GS6600 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
U-Value0.44-0.52
AAMA RatingAW-PG100
Test Size (inches)60 X 36
Air Infiltration (cfm/ft2)<0.10
Water Resistance (psf)12
Design Pressure Positive (psf)100
Frame Depth (inches) 2.5
Description New and improved highly energy efficient commercial window with a historic window profile. The newly designed GS6600 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
U-Value0.44-0.52
AAMA RatingAW-PG100
Test Size (inches)60 x 99
Air Infiltration (cfm/ft2)<0.10
Water Resistance (psf)12
Design Pressure Positive (psf)100

Technical Data

CAD Files

Description

AutoCAD

PDF

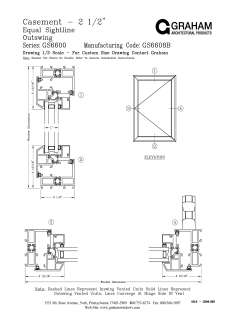

Outswing; Equal Sightline
Outswing; Equal Sightline
Outswing; Equal Sightline

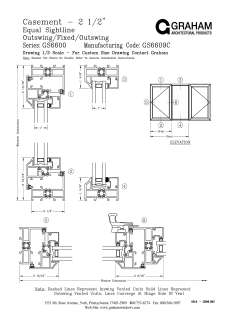

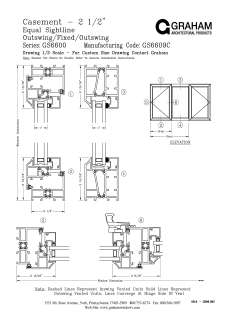

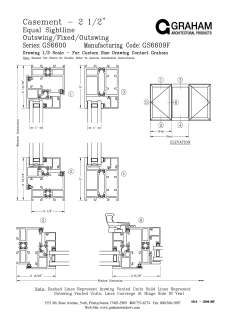

Outswing/Fixed/Outswing; Equal Sightline
Outswing/Fixed/Outswing; Equal Sightline
Outswing/Fixed/Outswing; Equal Sightline

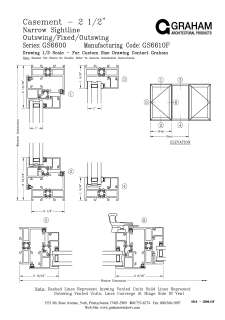

Outswing/Fixed/Outswing; Narrow Sightline
Outswing/Fixed/Outswing; Equal Sightline
Outswing/Fixed/Outswing; Narrow Sightline

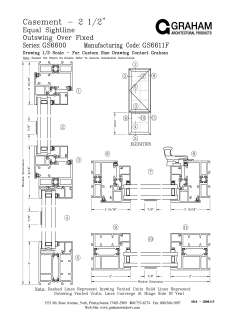

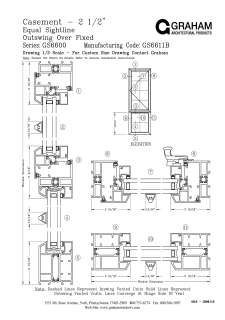

Outswing Over Fixed; Equal Sightline
Outswing Over Fixed; Equal Sightline
Outswing Over Fixed; Equal Sightline
Ouswing Twin Casement

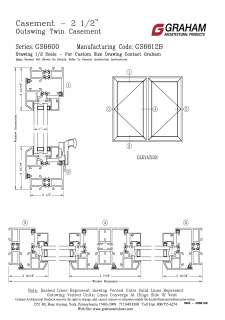

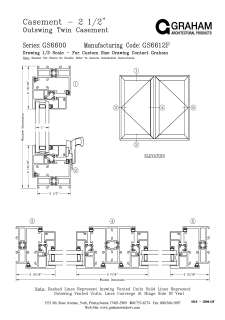

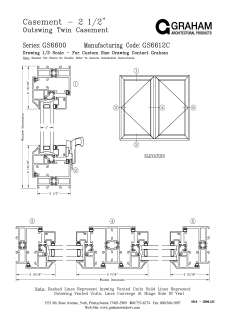

Outswing Twin Casement
Outswing Twin Casement

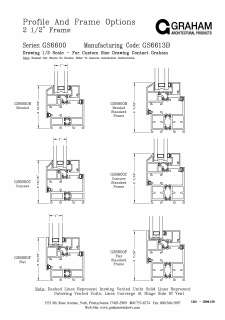

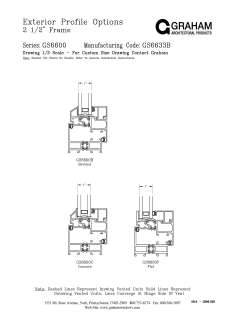

Outswing Exterior Profile Options

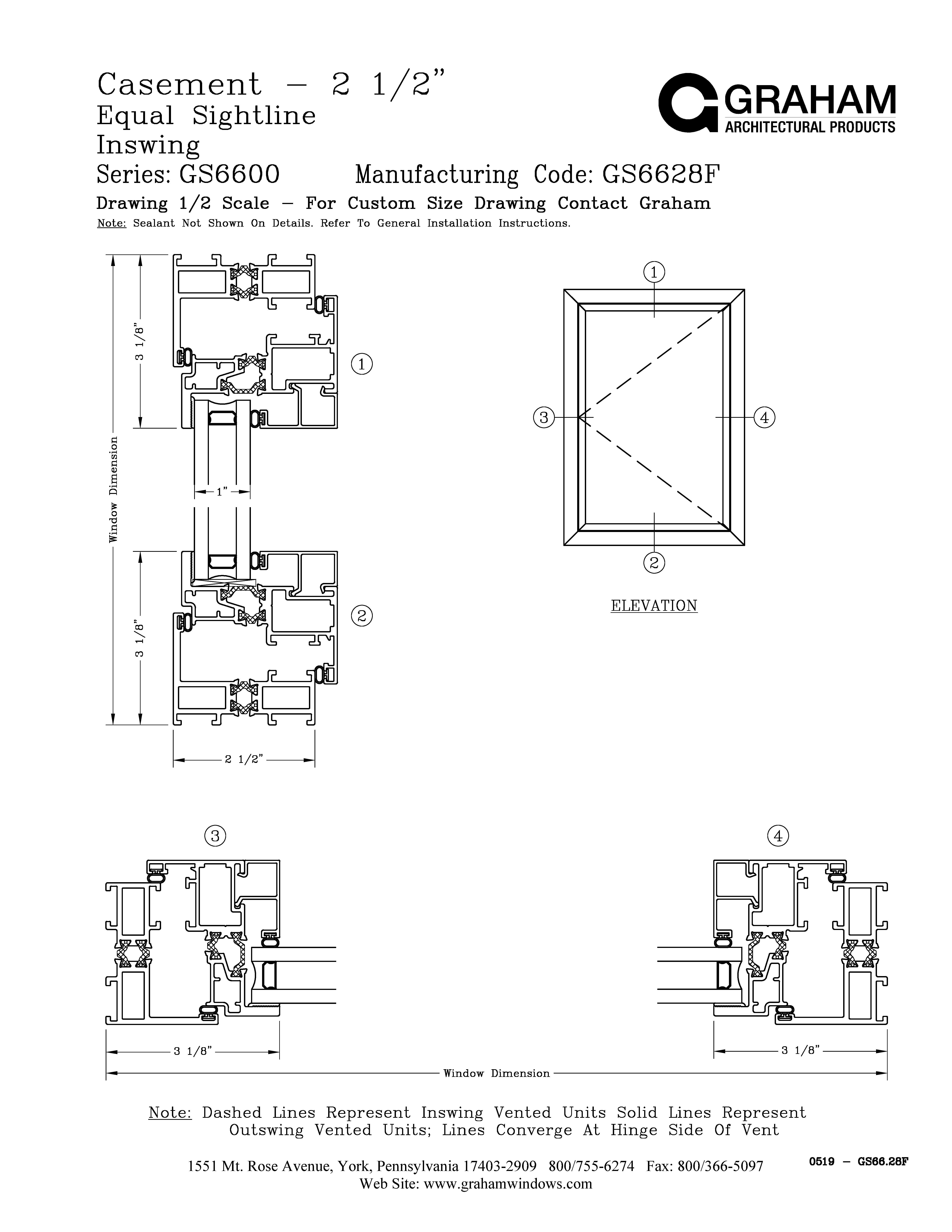

Inswing; Equal Sightline
Inswing; Equal Sightline
Inswing; Equal Sightline

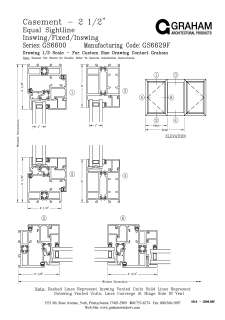

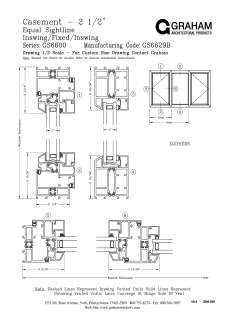

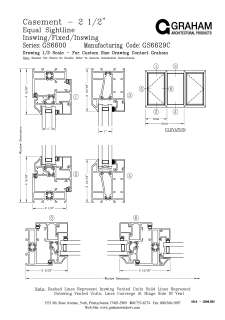

Inswing/Fixed/Inswing; Equal Sightline
Inswing/Fixed/Inswing; Equal Sightline
Inswing/Fixed/Inswing; Equal Sightline

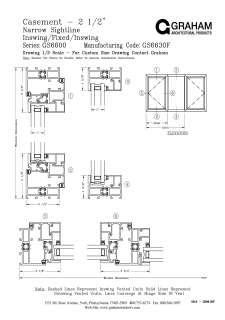

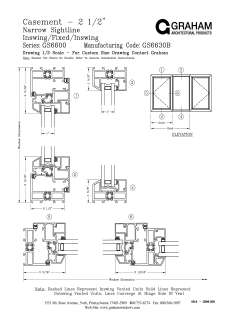

Inswing/Fixed/Inswing; Narrow Sightline
Inswing/Fixed/Inswing; Narrow Sightline
Inswing/Fixed/Inswing; Narrow Sightline

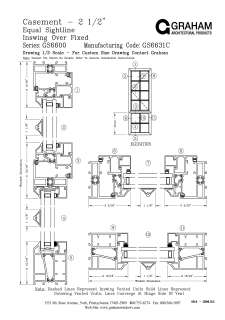

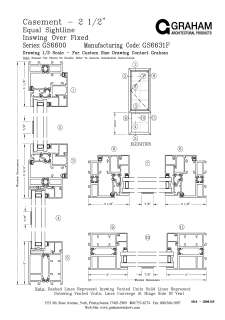

Inswing Over Fixed; Equal Sightline
Inswing Over Fixed; Equal Sightline
Inswing Over Fixed; Equal Sightline

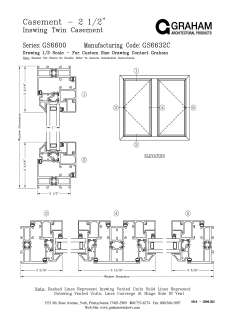

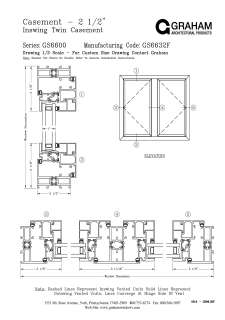

Inswing Twin Casement
Inswing Twin Casement
Inswing Twin Casement
Inswing Exterior Profile Options
aama-nfrc-web_med
TESTING: Our products are tested to the standards of and certified by the American Architectural Manufacturer's Association and the National Fenestration Rating Council.
