HIS6300 Series Fixed

Fixed Window

Frame Depth (inches) 3.5

Description Fixed window for hurricane-impact resistance.



  • Applications
  • Hurricane Resistant

Test Size (inches)

48 x 80

Water Resistance (psf)

12

Design Pressure Positive (psf)

80

Design Pressure Negative (psf)

120

Large Missle

Meets

Small Missle

Meets

Notes

Contact Graham for available glazing and test configurations.

Standard Features

  • Fixed window for hurricane-impact resistance
  • Operable vent is tested to withstand three 2000 ft-lb impacts and still operate
  • Specially designed hardware and glazing system for hospital and psychiatric applications (maintenance personnel access only)
  • Dual strut thermal breaks for improved thermal performance
  • 0.125” wall thickness in frame and vent members
  • In-swing casement or projected vents
  • Dual glazed design offers:
    - Interior impact-resistant polycarbonate lite
    - High performance glazing combinations including triple glazed
    - Integral mini-blinds
  • Concealed hinges with built-in snubber

Optional Features

  • Glazing type, layers and thickness may vary dependent on level of protection needed
  • Number of locking points may vary dependent on level of protection needed
  • Dual finish (two-tone color) option

Technical Data

Installation Accessories

3½” Frame Accessories
View Accessories >

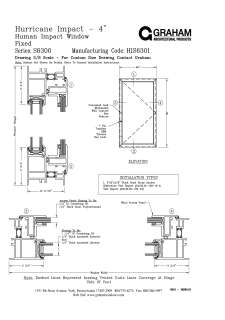

CAD Files

Description

AutoCAD

PDF

Fixed; 1/2" Access Panel; 1" Annealed IG

TESTING:ASTM E1886, ASTM E1996, and/or TAS 201, TAS 202, TAS 203
