S1400H Fixed Offset

Fixed Window

Frame Depth (inches) 4.0

Description This fixed window system mulls to fixed and operable products of the same frame depth.



  • Applications
  • Commercial
  • Education
  • Energy Performance
  • Healthcare
  • Historic Replication

AAMA Rating

AW-PG115

Test Size (inches)

60 x 106

Air Infiltration (cfm/ft2)

0.03

Water Resistance (psf)

15.04

Design Pressure Positive (psf)

120.30

Uniform Load Structural (psf)

180.45

U-Value

0.30-0.42

CRF

66

Notes

The air infiltration and water resistance performance values provided above were achieved in a controlled lab environment. Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products.

Standard Features

  • Mulls to fixed and operable products of same frame depth
  • Bead glazing up to 1" thick
  • Coped corner construction

Optional Features

  • Dual windows combine two frames joined by thermal barrier; each frame may be single or dual glazed
  • Dual-glazed split sash to permit use of high-performance glazing combinations & integral blinds
  • True and exterior-applied muntin grids
  • Radius shapes and custom curving to specification
  • Sloped glazing leg option
  • Blast-Resistant (B1400) and Hurricane-Resistant (HI1400) versions available
  • Dual finish (two-tone color) option

Technical Data

Installation Accessories

4" Frame Accessories
View Accessories >

CAD Files

Description

AutoCAD

PDF

Fixed Offset - 1" IG

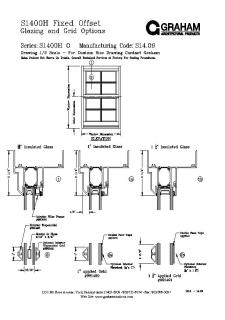

Glazing and Grid Options

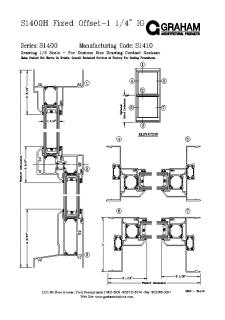

Fixed Offset - 1-1/4" IG

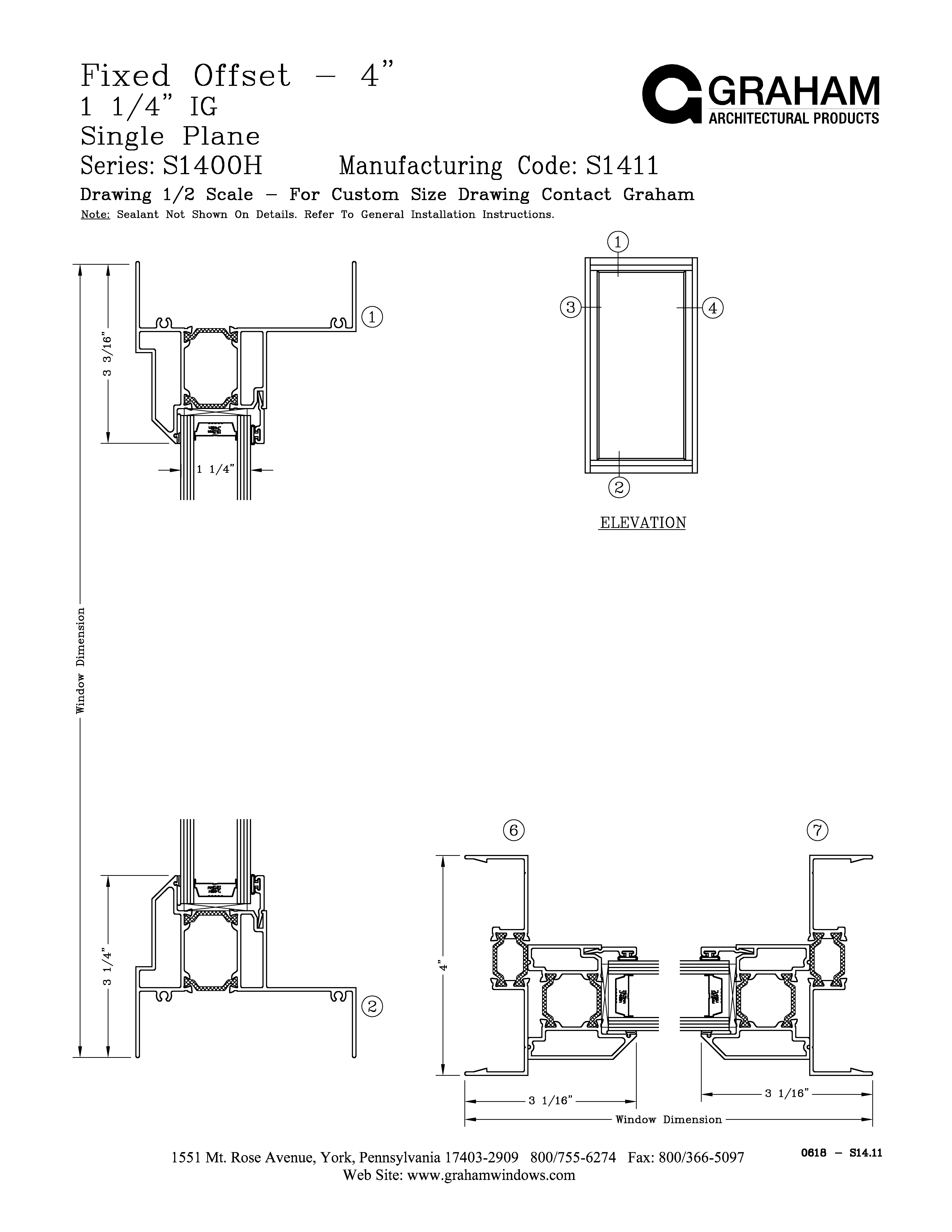

Fixed Offset - 1-1/4" IG, Single Plane
Fixed Offset - 15/16" IG, Single Plane
aama-nfrc-web_med
TESTING: Our products are tested to the standards of and certified by the American Architectural Manufacturer's Association and the National Fenestration Rating Council.
