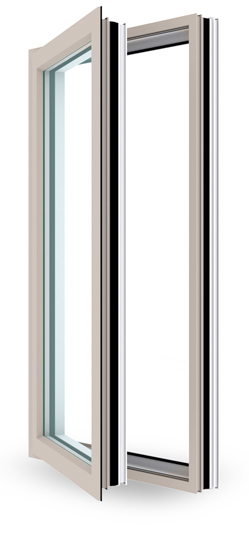

GT6800 Series Casement

Casement Window

Frame Depth (inches) 3.375

Description New and improved highly energy efficient commercial window with a historic window profile. The newly designed GT6800 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.



  • Applications
  • Commercial

AAMA Rating

AW-PG100

Test Size (inches)

36 x 60

Air Infiltration (cfm/ft2)

<0.10

Water Resistance (psf)

12

Design Pressure Positive (psf)

100

Uniform Load Structural (psf)

150

U-Value

0.25-0.37

CRF

66-72

Notes

Performance results based on projected window | Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products. | U-values will vary depending upon glazing selected and sample size

Standard Features

  • 3-3/8” Frame Depth
  • Special euro-grooves to accommodate multiple hardware options and accessory applications
  • Superior joinery allows for larger units and more configurations
  • Deep sloped exterior glazing leg
  • Multiple glazing depths available
  • Fixed/operable intermediate design offers minimal sightlines
  • Design allows multiple units into one opening simplifying installation
  • Larger thermal strut technology for excellent thermal performance
  • Dual finish (two-tone color) option
  • Concealed hinges
  • 4-inch limited opening device

Optional Features

  • True and exterior applied muntin grids
  • Concave frame and muntins
  • Flush-face vent/frame
  • Equal sightline frame
  • Roto operators
  • Single lever operator
    - Eliminates need for wicket screens
    - Can assist with meeting ADA operational forces
  • Multi-point locking system

Related Products

Frame Depth (inches) 3.375
Description New and improved highly energy efficient commercial window with a historic window profile. The newly designed GT6800 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
U-Value0.25-0.37
AAMA RatingAW-PG100
Test Size (inches)60 x 99
Air Infiltration (cfm/ft2)<0.10
Water Resistance (psf)12
Design Pressure Positive (psf)100

GT6800 Series Projected

Projected Window
Frame Depth (inches) 3.375
Description New and improved highly energy efficient commercial window with a historic window profile. The newly designed GT6800 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
U-Value0.25-0.37
AAMA RatingAW-PG100
Test Size (inches)60 X 36
Air Infiltration (cfm/ft2)<0.10
Water Resistance (psf)12
Design Pressure Positive (psf)100

Technical Data

Installation Accessories

3⅜" Frame Accessories
View Accessories >
3⅜" Unitized Frame Accessories
View Accessories >

CAD Files

Description

AutoCAD

PDF

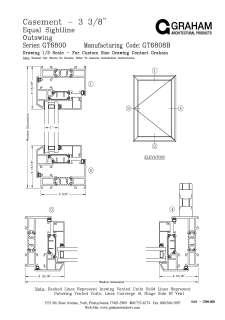

Outswing; Equal Sightline
Outswing; Equal Sightline
Outswing; Equal Sightline

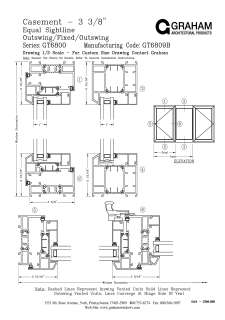

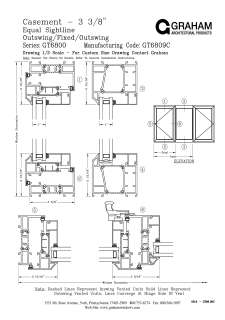

Outswing/Fixed/Outswing; Equal Sightline
Outswing/Fixed/Outswing; Equal Sightline
Outswing/Fixed/Outswing; Equal Sightline

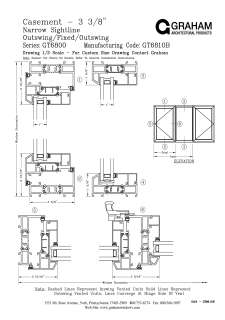

Outswing/Fixed/Outswing; Narrow Sightline
Outswing/Fixed/Outswing; Narrow Sightline
Outswing/Fixed/Outswing; Narrow Sightline

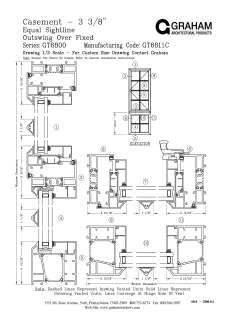

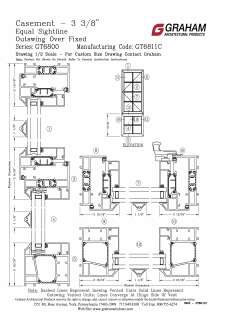

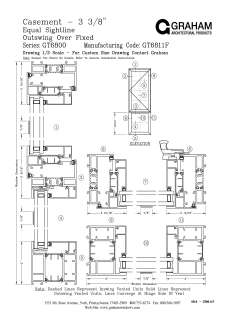

Outswing Over Fixed; Equal Sightline
Outswing Over Fixed; Equal Sightline
Outswing Over Fixed; Equal Sightline

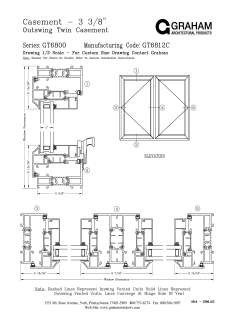

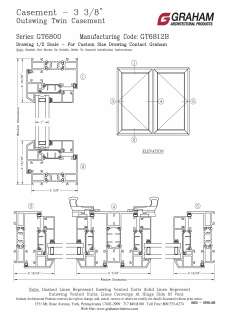

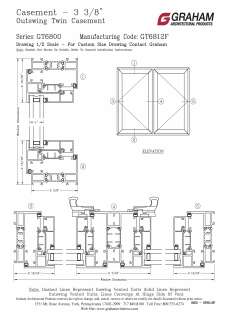

Outswing Twin Casement
Outswing Twin Casement
Outswing Twin Casement

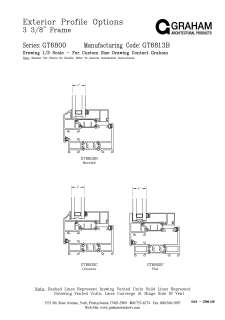

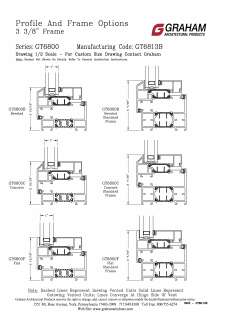

Outswing Exterior Profile Options

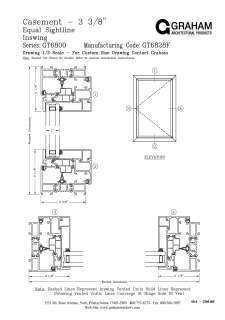

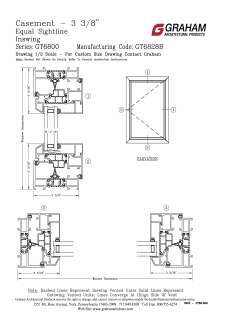

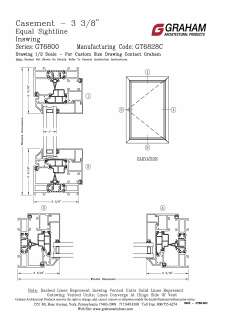

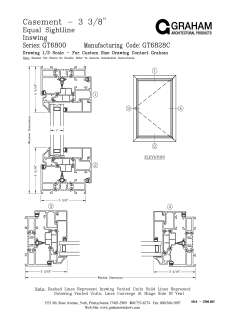

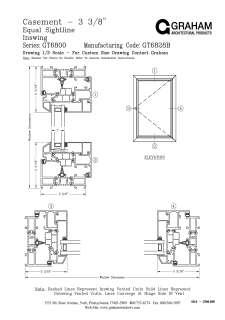

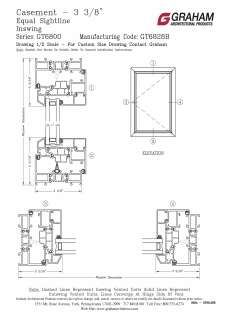

Inswing; Equal Sightline

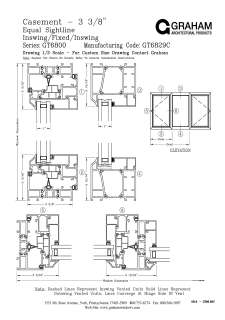

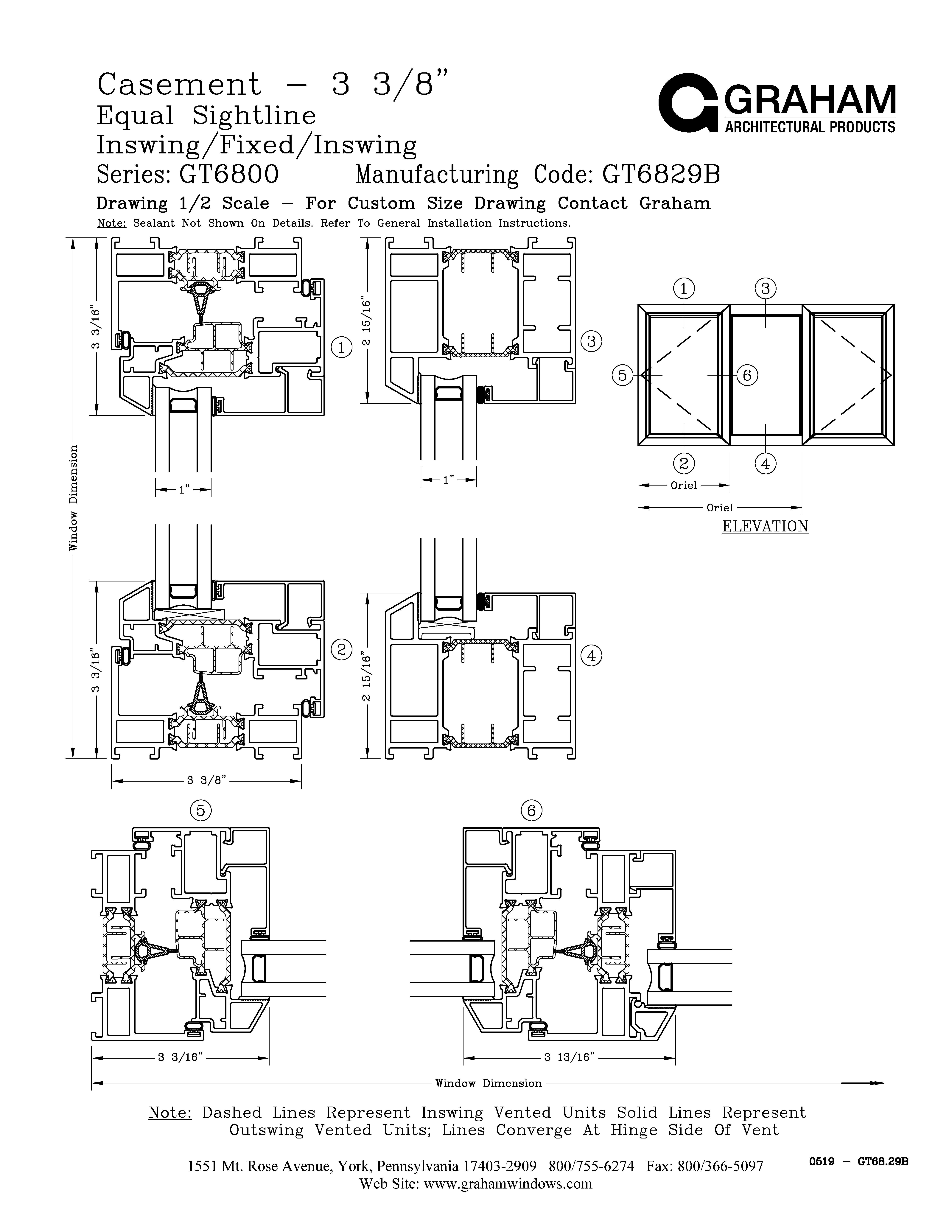

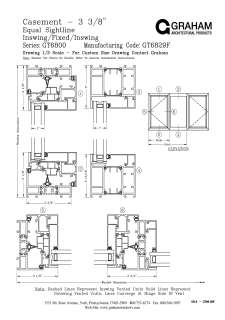

Inswing/Fixed/Inswing; Equal Sightline

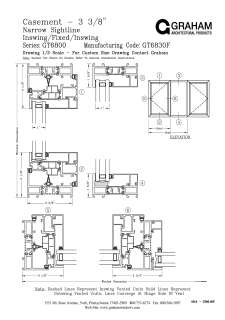

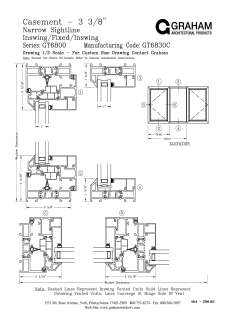

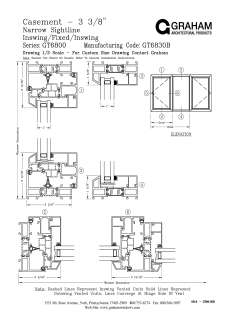

Inswing/Fixed/Inswing; Narrow Sightline

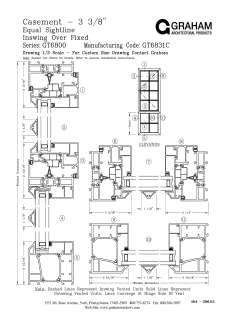

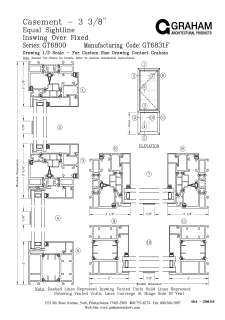

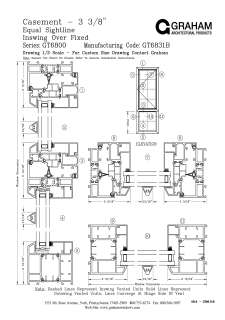

Inswing Over Fixed; Equal Sightline

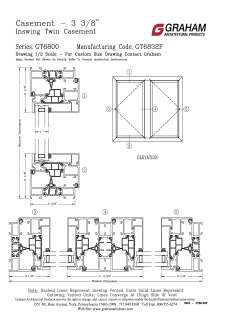

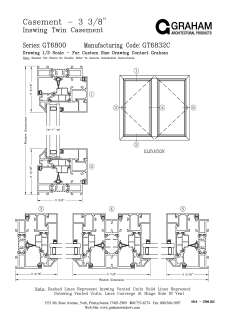

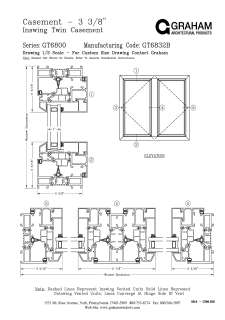

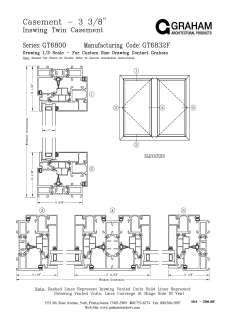

Inswing Twin Casement

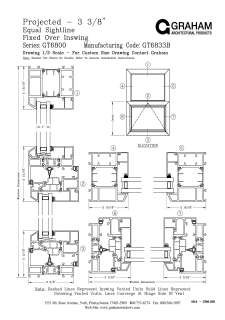

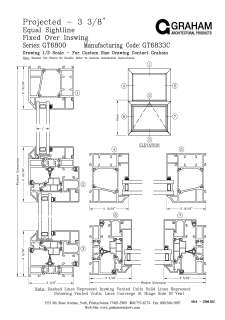

Fixed Over Inswing; Equal Sightline
Inswing; Equal Sightline
Inswing/Fixed/Inswing; Equal Sightline
Inswing/Fixed/Inswing; Narrow Sightline
Inswing Over Fixed; Equal Sightline
Inswing Twin Casement
Fixed Over Inswing; Equal Sightline
Inswing; Equal Sightline
Inswing/Fixed/Inswing; Equal Sightline
Inswing/Fixed/Inswing; Narrow Sightline
Inswing Over Fixed; Equal Sightline
Inswing Twin Casement
aama-nfrc-web_med
TESTING: Our products are tested to the standards of and certified by the American Architectural Manufacturer's Association and the National Fenestration Rating Council.
