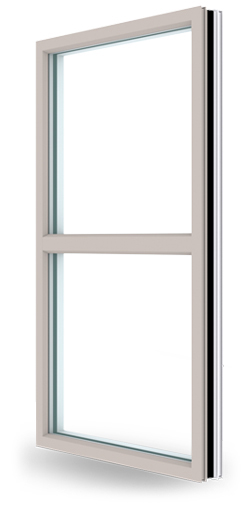

GT6800 Series Fixed

Fixed Window

Frame Depth (inches) 3.375

Description New and improved highly energy efficient commercial window with a historic window profile. The newly designed GT6800 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.



  • Applications
  • Commercial
  • Education

AAMA Rating

AW-PG100

Test Size (inches)

60 x 99

Air Infiltration (cfm/ft2)

<0.10

Water Resistance (psf)

12

Design Pressure Positive (psf)

100

Uniform Load Structural (psf)

150

U-Value

0.25-0.37

CRF

66-72

Notes

Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products. | U-values will vary depending upon glazing selected and sample size

Standard Features

  • 3-3/8” Frame Depth
  • Special euro-grooves to accommodate multiple hardware options and accessory applications
  • Superior joinery allows for larger units and more configurations
  • Deep sloped exterior glazing leg
  • Multiple glazing depths available
  • Fixed/operable intermediate design offers minimal sightlines
  • Design allows multiple units into one opening simplifying installation
  • Larger thermal strut technology for excellent thermal performance
  • Dual finish (two-tone color) option
  • Concealed hinges
  • 4-inch limited opening device

Optional Features

  • True and exterior applied muntin grids
  • Concave frame and muntins
  • Flush-face vent/frame
  • Equal sightline frame

Related Products

GT6800 Series Dual Action

Dual Action Window
Frame Depth (inches) 3.375
Description Highly energy efficient commercial window with a historic window profile. The GT6800 incorporates thermal strut technology for optimal thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
U-Value0.20-0.37
AAMA RatingCW-PG70
Test Size (inches)48 x 72
Air Infiltration (cfm/ft2)<0.10
Water Resistance (psf)12
Design Pressure Positive (psf)70

GT6800 Series Casement

Casement Window
Frame Depth (inches) 3.375
Description New and improved highly energy efficient commercial window with a historic window profile. The newly designed GT6800 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
U-Value0.25-0.37
AAMA RatingAW-PG100
Test Size (inches)36 x 60
Air Infiltration (cfm/ft2)<0.10
Water Resistance (psf)12
Design Pressure Positive (psf)100

GT6800 Series Projected

Projected Window
Frame Depth (inches) 3.375
Description New and improved highly energy efficient commercial window with a historic window profile. The newly designed GT6800 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
U-Value0.25-0.43
AAMA RatingAW-PG100
Test Size (inches)60 X 36
Air Infiltration (cfm/ft2)<0.10
Water Resistance (psf)12
Design Pressure Positive (psf)100

Technical Data

Installation Accessories

3⅜" Frame Accessories
View Accessories >
3⅜" Unitized Frame Accessories
View Accessories >

CAD Files

Description

AutoCAD

PDF

Fixed Offset; Equal Sightline w/Blinds & Access Panel (Beveled)
Fixed: Narrow Sightline (Beveled)
Fixed: Narrow Sightline (Concave)
Fixed: Narrow Sightline (Flat)
Fixed; Equal Sightline (Beveled)
Fixed; Equal Sightline (Concave)
Fixed; Equal Sightline (Flat)
Exterior Profile Options (Vented Product Shown)
aama-nfrc-web_med
TESTING: Our products are tested to the standards of and certified by the American Architectural Manufacturer's Association and the National Fenestration Rating Council.
