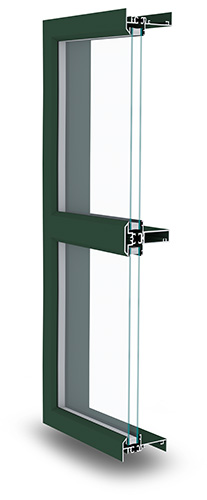

1200 Series Fixed

Fixed Window

Frame Depth (inches) 3.25

Description Architectural grade fixed window system mulls to 3-1/4" fixed and operable products.



  • Applications
  • Commercial
  • Energy Performance
  • Government and Municipal
  • Historic Replication

AAMA Rating

AW-PG120

Test Size (inches)

60 x 99

Air Infiltration (cfm/ft2)

0.01

Water Resistance (psf)

12.11

Design Pressure Positive (psf)

120.30

Uniform Load Structural (psf)

180.45

U-Value

0.35 - 0.57

CRF

63

STC

31 - 36

Notes

The air infiltration and water resistance performance values provided above were achieved in a controlled lab environment. Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products.

Standard Features

  • Mulls to fixed and operable products of same frame depth
  • Bead glazing up to 1" thick
  • Coped corner construction

Optional Features

  • True and exterior-applied muntin grids
  • Radius shapes and custom curving to specification
  • Offset glazing to simulate single-hung window
  • Sloped glazing leg option
  • Blast-Resistant (B1200) version available

Related Products

Frame Depth (inches) 3.25
Description Architectural grade fixed window system mulls to 3-1/4" fixed and operable products. Offset lites simulate the appearance of a hung window.
U-Value0.37 - 0.46
AAMA RatingAW-PG70
Test Size (inches)60 x 99
Air Infiltration (cfm/ft2)0.01
Water Resistance (psf)12
Design Pressure Positive (psf)70

Technical Data

Installation Accessories

3¼" Unitized Frame Accessories
View Accessories >
3¼” Frame Accessories
View Accessories >

CAD Files

Description

AutoCAD

PDF

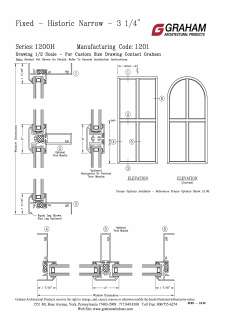

Historic Narrow

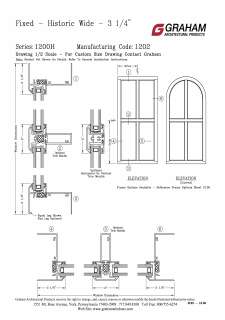

Historic Wide

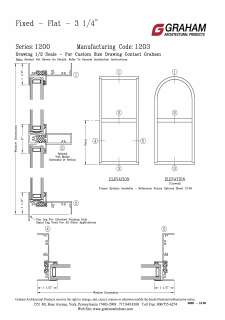

Flat Frame, Curved-Top Option

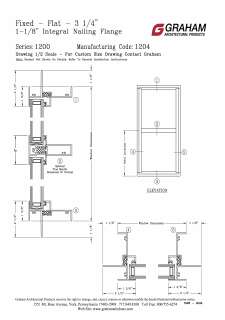

Flat Frame, 1-1/8" Integral Nailing Flange

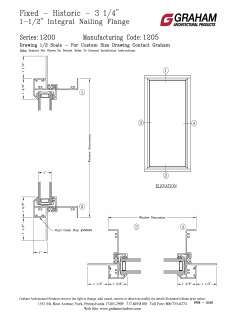

Historic Frame, w 1-1/2" Integral Nailing Flange

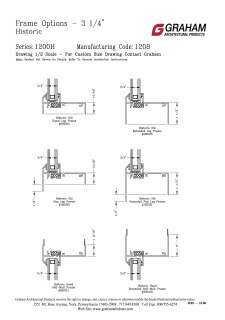

Frame Options: Historic

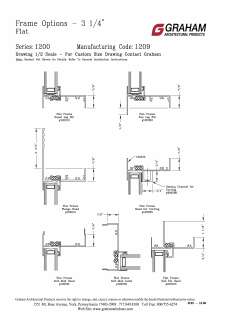

Frame Options: Flat
Glazing Options: Flat & Historic

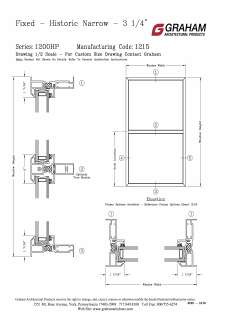

Historic Narrow: High Performance

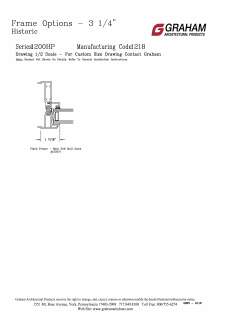

Frame Options: Historic High Performance
aama-nfrc-web_med
TESTING: Our products are tested to the standards of and certified by the American Architectural Manufacturer's Association and the National Fenestration Rating Council.
