GT7700 Series Terrace Doors

Doors

Frame Depth (inches) 2.75 - 3.75

Description Highly energy efficient terrace door system that can mull to other GT products of the same frame depth.



  • Applications
  • Commercial
  • Energy Performance
  • Residential High-Rise

AAMA Rating

AW-PG50 / AW-PG40 (low sill)

Test Size (inches)

48 x 96

Air Infiltration (cfm/ft2)

0.05

Water Resistance (psf)

12.11

(Low Sill: Limited Water, Contact Graham)

Design Pressure Positive (psf)

60.15/90.23

Uniform Load Structural (psf)

75.19/135.34

U-Value

0.31-0.39

CRF

N/A

STC

N/A

Notes

The air infiltration and water resistance performance values provided above were achieved in a controlled lab environment. Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products.

Standard Features

  • 2 3/4", 3 3/8", 3 3/4" frame depth
  • Thermal strut technology for superior U-values
  • Center gasketed for pressure equalization
  • Euro-groove design for hardware versatility
  • Additional locking points if desired
  • Dual finish capability
  • EPDM dry glazed to accommodate field installation
  • 1" overall glazing

Optional Features

  • Between-the-glass grids
  • Dual finish (two-tone color) option

Technical Data

Installation Accessories

2¾" Unitized Frame Accessories
View Accessories >
2¾” Frame Accessories
View Accessories >
3¾" Unitized Frame Accessories
View Accessories >
3¾” Frame Accessories
View Accessories >

CAD Files

Description

AutoCAD

PDF

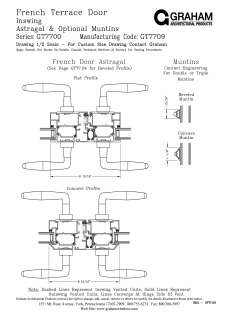

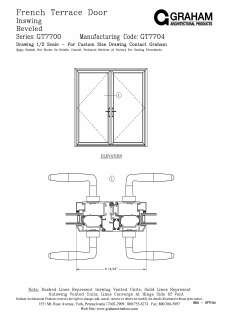

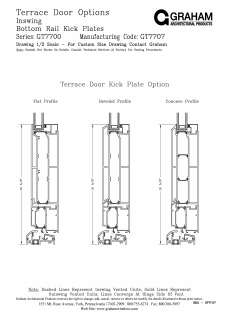

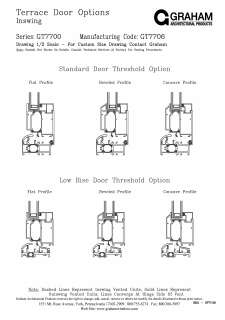

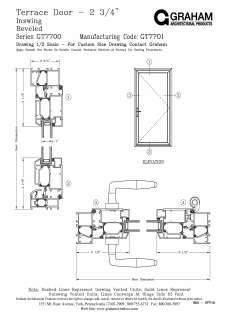

Inswing; 2¾" Frame Depth

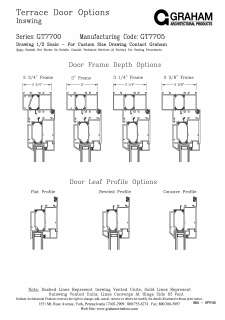

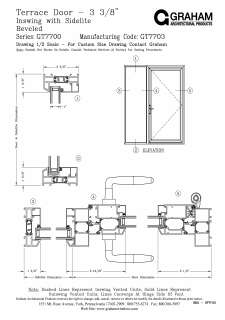

Inswing; 3⅜" Frame Depth
Inswing; 3¾" Frame Depth

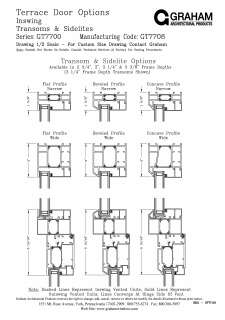

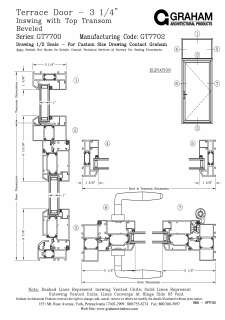

Fixed Over Terrace Door; Inswing; 2¾" Frame Depth
Fixed/Terrace Door; Inswing; 2¾" Frame Depth

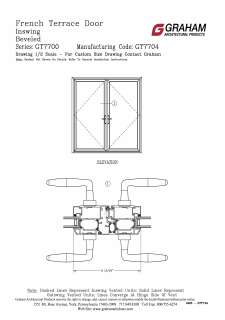

Double Terrace Door; Inswing; 2¾" Frame Depth

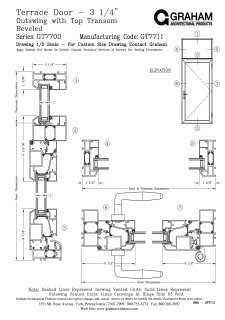

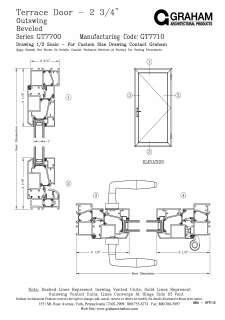

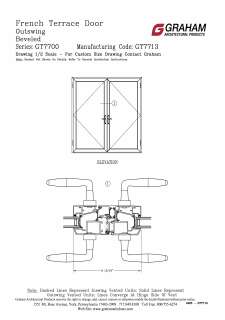

Outswing; 2¾" Frame Depth
Outswing; 3⅜" Frame Depth

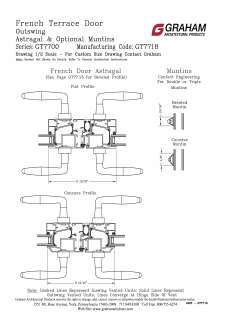

Outswing; 3¾" Frame Depth
Fixed Over Terrace Door; Outswing; 2¾" Frame Depth
Inswing w/True Muntin; 2¾" Frame Depth
Outswing w/True Muntin; 2¾" Frame Depth
Fixed Over Double Terrace Door; Inswing; 2¾" Frame Depth
aama-nfrc-web_med
TESTING: Our products are tested to the standards of and certified by the American Architectural Manufacturer's Association and the National Fenestration Rating Council.
