Print this page S1400 Series Fixed
Fixed Window
Frame Depth (inches) 4.0
Description This thermal strutted architectural grade fixed window system mulls to fixed and operable products of the same frame depth.
- Applications
- Commercial
- Energy Performance
- Healthcare
- Historic Replication
AAMA Rating
AW-PG100
Test Size (inches)
60 x 99
Air Infiltration (cfm/ft2)
0.01
Water Resistance (psf)
12.11
Design Pressure Positive (psf)
100.25
Uniform Load Structural (psf)
150.38
U-Value
0.35 - 0.53
CRF
68
STC
N/A
Notes
The air infiltration and water resistance performance values provided above were achieved in a controlled lab environment. Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products.
Standard Features
- Mulls to fixed and operable products of same frame depth
- Bead glazing up to 1" thick
- Coped corner construction
Optional Features
- Dual windows combine two frames joined by thermal barrier; each frame may be single or dual glazed
- Dual-glazed split sash to permit use of high-performance glazing combinations & integral blinds
- True and exterior-applied muntin grids
- Radius shapes and custom curving to specification
- Blast-Resistant (B1400) and Hurricane-Resistant (HI1400) versions available
- Dual finish (two-tone color) option
Related Products
S1400H Fixed Offset
Fixed WindowFrame Depth (inches) 4.0
Description This fixed window system mulls to fixed and operable products
of the same frame depth.
U-Value0.30-0.42
AAMA RatingAW-PG115
Test Size (inches)60 x 106
Air Infiltration (cfm/ft2)0.03
Water Resistance (psf)15.04
Design Pressure Positive (psf)120.30
Technical Data
Product Literature
Additional Resources
Specifications
Thermal Summary
S1400H Thermal Simulation Summary

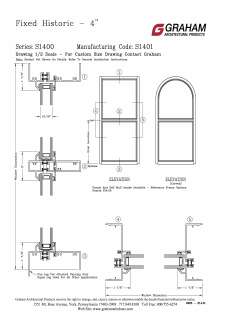

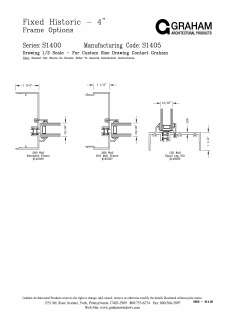

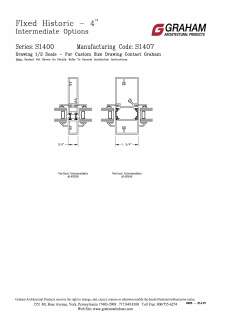

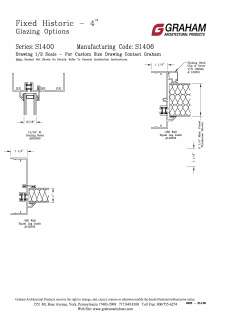

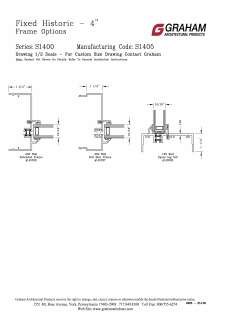

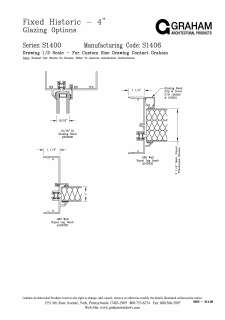

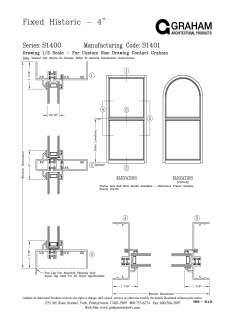

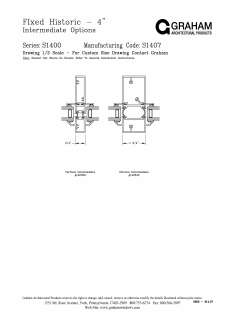

CAD Drawings
S1400H All CAD Drawings - ZIP File
Installation Guide
Fixed Installation Instructions
Accessory Installation Guides
Installation Accessories
CAD Files
Description
AutoCAD
 TESTING: Our products are tested to the standards of and certified by the American Architectural Manufacturer's Association and the National Fenestration Rating Council. |
