Print this page GT6700 Series Casement
Casement Window
Frame Depth (inches) 3.0
Description New and improved highly energy efficient commercial window with a historic window profile. The newly designed GT6700 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
- Applications
- Commercial
AAMA Rating
AW-PG100
Test Size (inches)
36 x 60
Air Infiltration (cfm/ft2)
<0.10
Water Resistance (psf)
12
Design Pressure Positive (psf)
100
Uniform Load Structural (psf)
150
U-Value
0.38 - 0.43
CRF
65
Notes
The air infiltration and water resistance performance values provided above were achieved in a controlled lab environment. Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products.
Standard Features
- 1-5/8” slim sightline historic profiles
- 3” Frame Depth
- Reduced number of parts for better product performance and integrity
- Special euro-grooves to accommodate multiple hardware options and accessory applications
- Superior joinery allows for larger units and more configurations
- Deep sloped exterior glazing leg
- Multiple glazing depths available
- Fixed/Operable intermediate design offers minimal sightlines
- Design allows multiple units into one opening simplifying installation
- Larger thermal strut technology for excellent thermal performance
- Dual finish (two-tone color) option
- Concealed hinges
- 4-inch limited opening device
Optional Features
- True and exterior applied muntin grids
- Concave frame and muntins
- Flush-face vent/frame
- Equal sightline frame
- Roto operators
- Single lever operator
- Eliminates need for wicket screens
- Can assist with meeting ADA operational forces - Multi-point locking system
Related Products
Hurricane Resistant - HIGT6700 Series Fixed
Fixed WindowFrame Depth (inches) 3.0
Description New and improved highly energy efficient window, for hurricane-impact resistance, with a historic
window profile. The newly designed GT6700 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
U-Value0.31 - 0.39
Test Size (inches)54 x 96
Air Infiltration (cfm/ft2)<0.10
Water Resistance (psf)12
Design Pressure Positive (psf)100
Uniform Load Structural (psf)150
GT6700 Series Projected
Projected WindowFrame Depth (inches) 3.0
Description New and improved highly energy efficient commercial window with a historic window profile. The newly designed GT6700 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
U-Value0.39 - 0.46
AAMA RatingAW-PG100
Test Size (inches)60 X 36
Air Infiltration (cfm/ft2)<0.10
Water Resistance (psf)12
Design Pressure Positive (psf)100
GT6700 Series Fixed
Fixed WindowFrame Depth (inches) 3.0
Description New and improved highly energy efficient commercial window with a historic
window profile. The newly designed GT6700 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
U-Value0.31 - 0.39
AAMA RatingAW-PG100
Test Size (inches)60 x 99
Air Infiltration (cfm/ft2)<0.10
Water Resistance (psf)12
Design Pressure Positive (psf)100
Technical Data
Product Literature
Additional Resources
Specifications
GT6700_OS Casement_AW-PG100_AAMA-08
GT6700F_OS Casement_AW-PG100_AAMA-08
CAD Drawings
GT6700 All CAD Files - ZIP File
Thermal Report Summaries
GT6700 Casement Thermal Simulation Summary (Outswing)
GT6700 Casement Thermal Simulation Summary (Inswing)
Product Performance Guide
Installation Guide
Projected/Casement Installation Instructions
Accessory Installation Guides
Installation Accessories
3" Unitized Frame Accessories
View Accessories >CAD Files
Description
AutoCAD

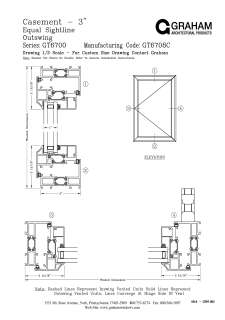

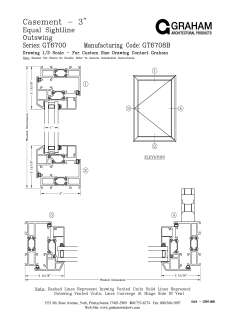

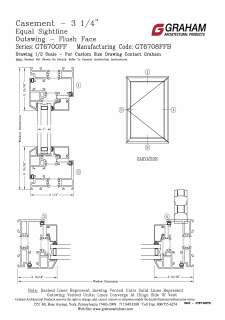

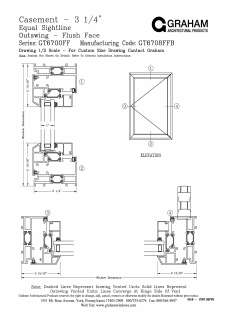

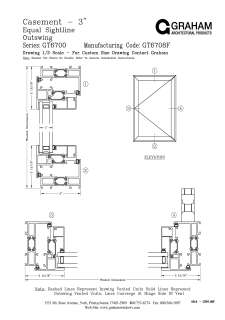

Outswing; Equal Sightline (Flush Face, Beveled)
- GT67_08FFB_0523.pdf
Drawing Preview

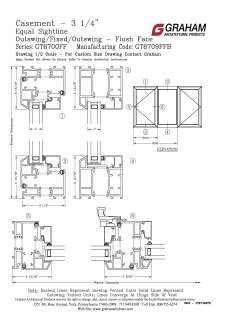

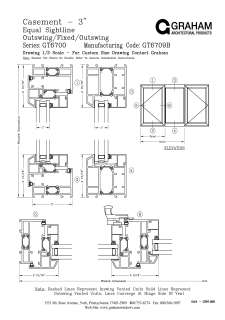

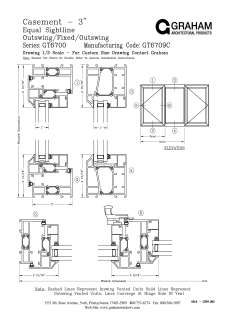

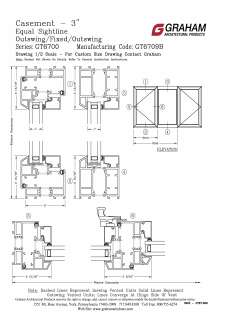

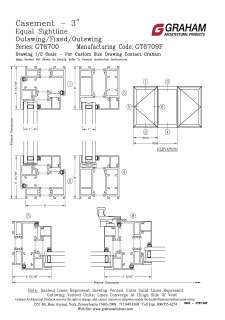

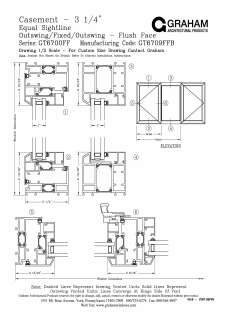

Outswing/Fixed/Outswing; Equal Sightline (Flush Face, Beveled)
- GT67_09FFB_0523.pdf
Drawing Preview

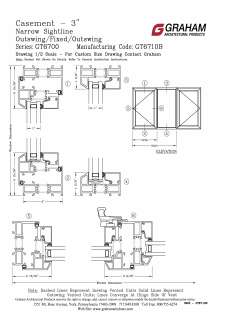

Casement/Fixed/Casement, Narrow Sightline (Beveled)
- GT67_10B_0523.pdf
Drawing Preview

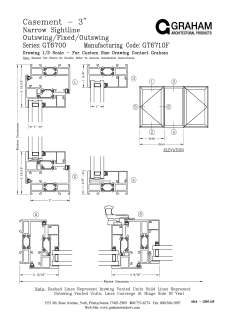

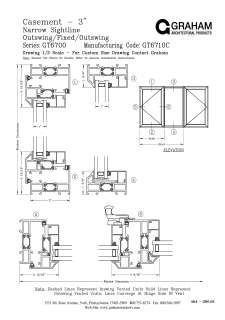

Outswing/Fixed/Outswing; Narrow Sightline (Concave)
- GT67_10C_0523.pdf
Drawing Preview
 TESTING: Our products are tested to the standards of and certified by the American Architectural Manufacturer's Association and the National Fenestration Rating Council. |
