SR6700 Series Steel Replica Fixed

Fixed Window

Frame Depth (inches) 3.25

Description The SR6700 steel replication window is designed to replicate the original steel windows used in many buildings. Available in fixed, projected and casement configurations. The innovative SR6700 Series window features a “floating vent”, large openings and minimal sight lines.



  • Applications
  • Commercial
  • Education
  • Historic Replication
  • Steel Replica Windows

AAMA Rating

AW-PG110

Test Size (inches)

60 x 99

Air Infiltration (cfm/ft2)

0.01

Water Resistance (psf)

12.11

Design Pressure Positive (psf)

110.28

Uniform Load Structural (psf)

165.41

U-Value

0.28 - 0.37

Notes

The air infiltration and water resistance performance values provided above were achieved in a controlled lab environment. Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products.

Standard Features

  • 1-1/8" nominal TDL concave muntins & applied grids, replicates historic steel profiles
  • Slim-line integral and fixed-stack mull for minimal sightlines
  • Overlap of vent to frame for historic replication
  • Concave exterior glazing leg
  • Receptor and panning systems available for installation

Optional Features

  • Triple grids - simulated TDL muntins in conjunction with true muntins
  • Receptor frame

Related Products

Frame Depth (inches) 3.25
Description The SR6700 steel replication window is designed to replicate the original steel windows used in many buildings. Available in fixed, projected and casement configurations. The innovative SR6700 Series window features a “floating vent”, large openings and minimal sight lines.
U-Value0.42 - 0.50
AAMA RatingCW-PG90
Air Infiltration (cfm/ft2)0.03
Water Resistance (psf)12.11
Design Pressure Positive (psf)90.23
Uniform Load Structural (psf)135.34
Frame Depth (inches) 3.25
Description The SR6700 steel replication window is designed to replicate the original steel windows used in many buildings. Available in fixed, projected and casement configurations. The innovative SR6700 Series window features a “floating vent”, large openings and minimal sight lines.
U-Value0.43 - 0.51 | 0.37-0.44 (Fixed w/ Floating Vent)
AAMA RatingCW-PG100
CW-PG40 (Fixed w/ Floating Vent 93 x 98)
Test Size (inches)60 X 36
Air Infiltration (cfm/ft2)0.01
Water Resistance (psf)12.11
Design Pressure Positive (psf)100.25

Technical Data

Installation Accessories

3¼" Unitized Frame Accessories
View Accessories >
3¼” Frame Accessories
View Accessories >

CAD Files

Description

AutoCAD

PDF

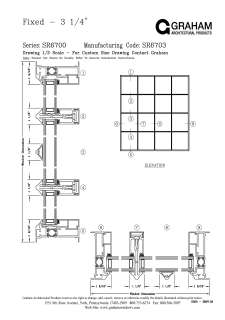

Fixed Window Only (Concave Profile Option)

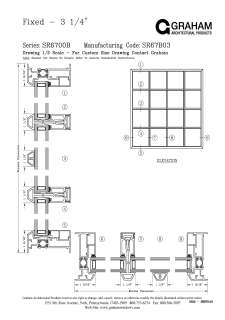

Fixed Window Only (Beveled Profile Option)

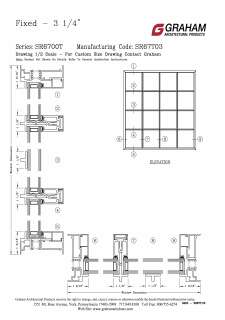

Fixed Window Only ("T" Profile Option)
Grid and Muntin Options (Concave Profile Option)
Grid and Muntin Options (Beveled Profile Option)

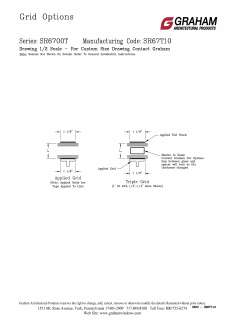

Grid and Muntin Options ("T" Profile Option)
Grid & Muntin Options: Simulated Vent (Concave Profile Option)
SR6700B Simulated Vent Options (Beveled Profile)
aama-nfrc-web_med
TESTING: Our products are tested to the standards of and certified by the American Architectural Manufacturer's Association and the National Fenestration Rating Council.
