SR6700 Series Steel Replica Projected

Projected Window

Frame Depth (inches) 3.25

Description The SR6700 steel replication window is designed to replicate the original steel windows used in many buildings. Available in fixed, projected and casement configurations. The innovative SR6700 Series window features a “floating vent”, large openings and minimal sight lines.



  • Applications
  • Commercial
  • Education
  • Historic Replication
  • Steel Replica Windows

AAMA Ratings

CW-PG100
CW-PG40 (Fixed w/ Floating Vent 93 x 98)

Test Size (inches)

60 X 36

Air Infiltration (cfm/ft2)

0.01

Water Resistance (psf)

12.11

Design Pressure Positive (psf)

100.25

Uniform Load Structural (psf)

150.38

U-Value

0.43 - 0.51 | 0.37-0.44 (Fixed w/ Floating Vent)

Notes

The air infiltration and water resistance performance values provided above were achieved in a controlled lab environment. Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products.

View 3D

Standard Features

  • 1-1/8" nominal TDL concave muntins & applied grids, replicates historic steel profiles
  • Slim-line integral and fixed-stack mull for minimal sightlines
  • Floating vent design with 2" perimeter sight-line
  • Stainless steel concealed hinges
  • White bronze cam lock hardware
  • Overlap of vent to frame for historic replication
  • Concave exterior glazing leg
  • Out-swing operation only
  • Receptor and panning systems available for installation

Optional Features

  • Triple grids - simulated TDL muntins in conjunction with true muntins
  • Vent limit devices
  • Interior screens with wicket doors
  • Receptor frame

Related Products

SR6700 Series Steel Replica Casement

Casement Window
Frame Depth (inches) 3.25
Description The SR6700 steel replication window is designed to replicate the original steel windows used in many buildings. Available in fixed, projected and casement configurations. The innovative SR6700 Series window features a “floating vent”, large openings and minimal sight lines.
U-Value0.42 - 0.50
AAMA RatingCW-PG90
Air Infiltration (cfm/ft2)0.03
Water Resistance (psf)12.11
Design Pressure Positive (psf)90.23
Uniform Load Structural (psf)135.34
SR6700 Product Data Sheet
SR6700 Catalog
SR6700 Sell Sheet
SR6700_Casement_CW-PG90_AAMA_6_2021

SR6700 Series Steel Replica Fixed

Fixed Window
Frame Depth (inches) 3.25
Description The SR6700 steel replication window is designed to replicate the original steel windows used in many buildings. Available in fixed, projected and casement configurations. The innovative SR6700 Series window features a “floating vent”, large openings and minimal sight lines.
U-Value0.28 - 0.37
AAMA RatingAW-PG110
Test Size (inches)60 x 99
Air Infiltration (cfm/ft2)0.01
Water Resistance (psf)12.11
Design Pressure Positive (psf)110.28
SR6700 Product Data Sheet
SR6700 Catalog
SR6700 Sell Sheet
SR6700_Fixed_CW-PG110_AAMA_6_2021

Technical Data

Product Literature

Additional Resources

SR6700 Product Data Sheet

SR6700 Catalog

SR6700 Sell Sheet

Specifications

SR6700_Projected_CW-PG100_AAMA_6_2021

Thermal Summary

SR6700 (Floating Vent) Thermal Simulation Summary

SR6700 (Vent Only) Thermal Simulation Summary

CAD Drawings

SR6700 All CAD Files - ZIP File

Accessories

Muntin Grid Options

Accessory Installation Guides

View Graham's Technical Resources Page

Installation Accessories

3¼" Unitized Frame Accessories
View Accessories >
3¼” Frame Accessories
View Accessories >

CAD Files

Description

AutoCAD

PDF

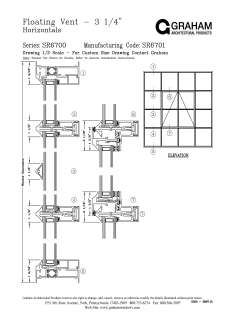

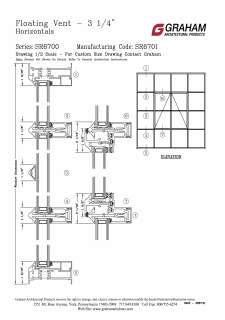

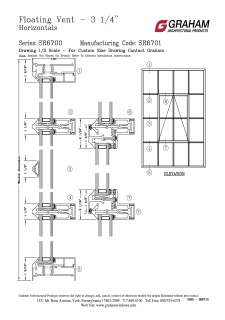

Floating Vent Horizontal cross-section (Concave Profile Option)
SR67_01_0323.dwg

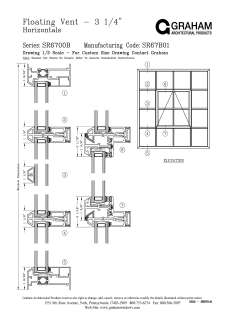

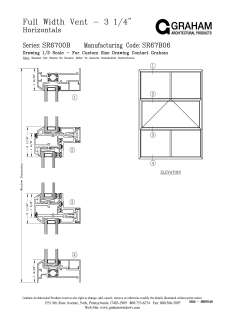

Floating Vent Horizontal cross-section (Beveled Profile Option)
SR67B_01_0323.dwg

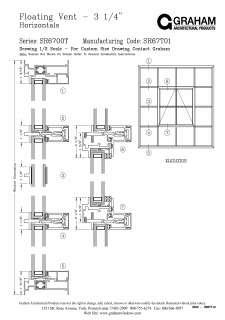

Floating Vent Horizontal cross-section ("T" Profile Option)
SR67T_01_0323.dwg

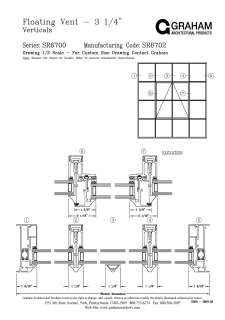

Floating Vent Vertical cross-section (Concave Profile Option)
SR67_02_0323.dwg

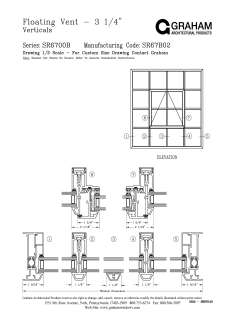

Floating Vent Vertical cross-section (Beveled Profile Option)
SR67B_02_0323.dwg

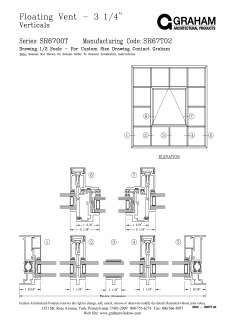

Floating Vent Vertical cross-section ("T" Profile Option)
SR67T_02_0323.dwg

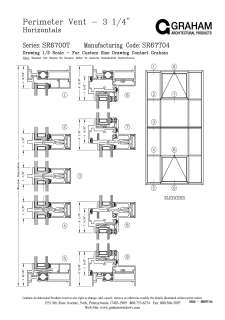

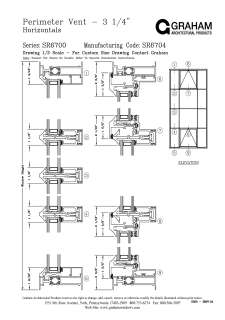

Perimeter Vent Horizontals (Concave Profile Option)
SR67_04_0323.dwg
Perimeter Vent Horizontals (Beveled Profile Option)
SR67B_04_0323.dwg
Perimeter Vent Horizontals ("T" Profile Option)
SR67T_04_0323.dwg

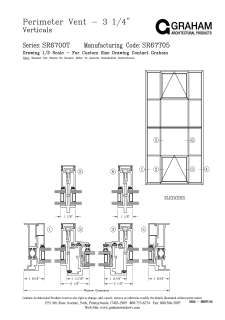

Perimeter Vent Verticals (Concave Profile Option)
SR67_05_0323.dwg

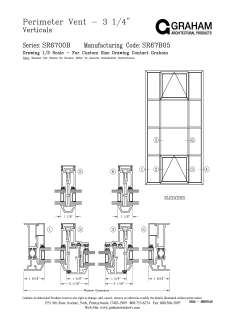

Perimeter Vent Verticals (Beveled Profile Option)
SR67B_05_0323.dwg
Perimeter Vent Verticals ("T" Profile Option)
SR67T_05_0323.dwg

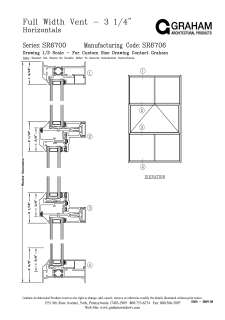

Full Width Vent Horizontals (Concave Profile Option)
SR67_06_0323.dwg
Full Width Vent Horizontals (Beveled Profile Option)
SR67B_06_0323.dwg

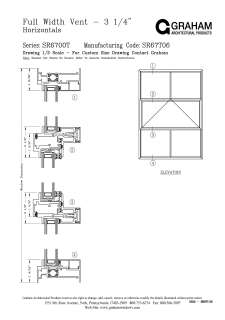

Full Width Vent Horizontals ("T" Profile Option)
SR67T_06_0323.dwg

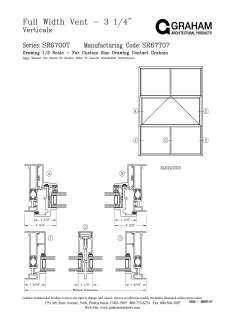

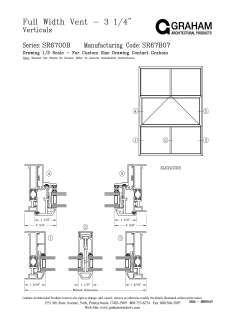

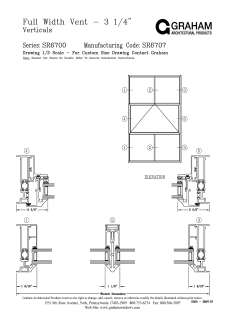

Full Width Vent Verticals (Concave Profile Option)
SR67_07_0323.dwg
Grid & Muntin Options (Concave Profile Option)
SR67_10_0923.dwg
Grid & Muntin Options (Beveled Profile Option)
SR67B_10_0923.dwg
SR6700 Grid options "T"
SR67T_10_0923.dwg
Grid & Muntin Options Simulated Vent (Concave Profile Option)
SR67_10SV_0923.dwg
Grid & Muntin Options Simulated Vent (Beveled Profile Option)
SR67B_10SV_0923.dwg
aama-nfrc-web_med
TESTING: Our products are tested to the standards of and certified by the American Architectural Manufacturer's Association and the National Fenestration Rating Council.
